Parts Information |
Document ID: GSMH-3C7FMS |
Laptop L40SX - Parts Listing
Applicable to: World-Wide
Parts Listing:

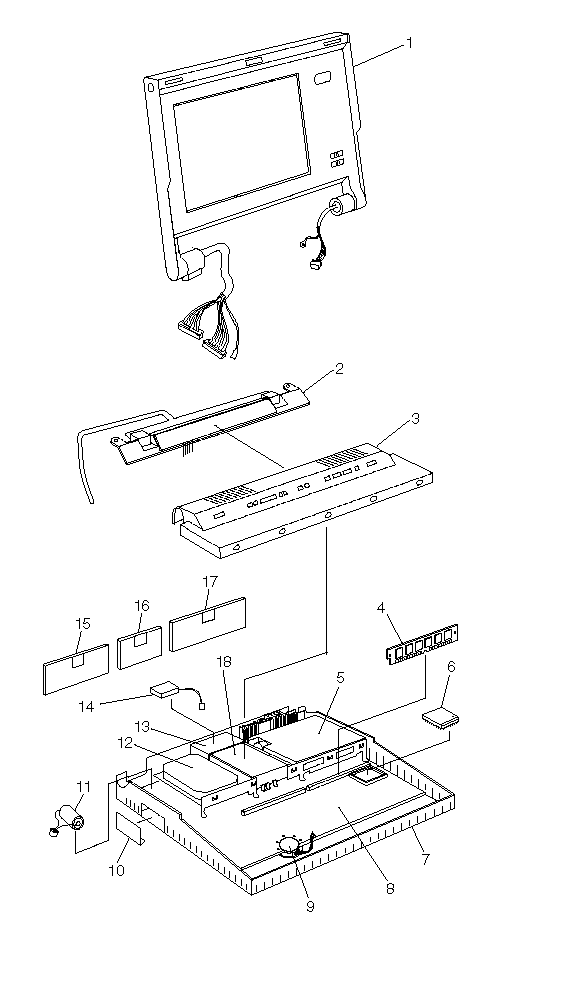

System Unit:
|
Index | ||
|
1 |
Display Assembly (LCD) |
95F4878 |
|
2 |
System-Status Display Assembly |
79F0991 |
|
3 |
Top Cover |
79F3893 |
|
4 |
2MB Memory Module Kit |
79F1002 |
|
4 |
4MB Memory Module Kit |
79F1003 |
|
4 |
8MB Memory Module Kit |
79F1004 |
|
6 |
80387SX ** Math Coprocessor |
79F1006 |
|
7 |
Bottom Cover |
79F3884 |
|
8 |
System Board |
95F4879 |
|
System Board (with attached speaker) |
8123176 | |
|
9 |
Speaker |
79F0989 |
|
Speaker (for p/n 8123176) |
79F0989 | |
|
10 |
Bezel, Blank |
79F3888 |
|
10 |
Bezel, Modem |
79F3889 |
|
10 |
Bezel, Serial Adapter |
79F3868 |
|
11 |
Backup Battery, Lithium |
79F0986 |
|
13 |
Shield, Battery |
79F3891 |
|
14 |
Standby Battery |
79F0992 |
|
15 |
Door, Bus Connector |
79F3886 |
|
16 |
Door, Battery |
79F3887 |
|
17 |
Door, I/O Connector |
79F3885 |
|
18 |
Rechargeable Battery |
79F0994 |
|
18 |
Rechargeable Battery |
79F3881 |
|
System Board Fuse Card |
95F6731 | |
|
Miscellaneous Kit |
79F3894 |
DASD Index:
|
5 |
Diskette Drive |
79F0983 |
|
Cable, Diskette Drive |
79F0987 | |
|
Bezel, Diskette Drive |
79F3892 | |
|
12 |
60MB Hard Disk Drive |
79F1009 |
|
80MB Hard Disk Drive |
95F4714 | |
|
Cable, Hard Disk Drive |
79F0988 |
Options and Adapters:
|
2MB Memory Module (80ns) |
79F1002 |
|
4MB Memory Module (80ns) |
79F1003 |
|
5.25-inch Drive Adapter/A (360KB/1.2MB) |
15F7996 |
|
6154 Real-Time Coprocessor (128KB) |
60X8192 |
|
6166 Real-Time Coprocessor (512KB) |
76X1013 |
|
8MB Memory Module (80ns) |
79F1004 |
|
8MB Memory Module Kit (80ns) |
64F3607 |
|
80386 Memory Expansion Adapter |
72X6671 |
|
AC Adapter |
79F0993 |
|
ActionMedia II Display Adapter |
69F9731 |
|
ActionMedia II Capture Option |
69F9735 |
|
ActionMedia II Video Cable |
69F9737 |
|
ActionMedia II Audio/Video Capture Cable |
69F9736 |
|
ActionMedia II Display CD-ROM Cable |
69F9747 |
|
Carrying Case |
79F3869 |
|
Communication Cable (for 79F0996) |
94X1540 |
|
Data/Fax Modem (U.S., Canada only) |
79F0996 |
|
Diskette Drive Bus Adapter |
72X8524 |
|
Enhanced 5250 Emulation Adapter |
64G3956 |
|
External Diskette Drive Adapter |
72X6757 |
|
Game Control Adapter |
8529151 |
|
PC Network Adapter |
8286171 |
|
PC Network Adapter II |
72X8105 |
|
PC Network Baseband Adapter |
72X8101 |
|
PhoneCommunicator Adapter |
33F4846 |
|
PhoneCommunicator Cable (Black-L) |
57F1261 |
|
PhoneCommunicator Cable (Black-S) |
57F1262 |
|
PhoneCommunicator Cable (Beige-L) |
57F1263 |
|
PhoneCommunicator Cable (Beige-S) |
57F1264 |
|
Printer Cable |
8529214 |
|
Quick Charger |
79F0995 |
|
Realtime Interface Coprocessor 6-Port V.35 |
72F0164 |
|
Screen Reader Adapter |
33F4842 |
|
Screen Reader Keypad |
1393515 |
|
Screen Reader Keypad Cable |
72X8537 |
|
SCSI Adapter/A (with Cache) |
85F0063 |
|
SCSI Adapter/A (without Cache) |
85F0002 |
|
SCSI Cable (internal) |
64F4127 |
|
SDLC Adapter |
8286099 |
|
Serial Adapter |
79F0998 |
|
Serial Adapter Cable |
8286170 |
|
Serial Adapter Connector |
8286194 |
|
Serial/Parallel Adapter |
8286147 |
|
SpeechViewer Adapter |
15F8511 |
|
Strap |
07G1449 |
|
Token-Ring 16/4 Adapter |
93F0334 |
|
Token-Ring Adapter |
16F0463 |
|
Token-Ring Adapter (with RPL Module) |
83X7839 |
Keyboard:
|
Arabic |
1396825 |
|
Belgian |
1396812 |
|
Canadian French |
1396810 |
|
Danish |
1396813 |
|
Dutch |
1396817 |
|
French |
1396814 |
|
German |
1396815 |
|
Greek |
1396826 |
|
Hebrew |
1396827 |
|
Icelandic |
1396828 |
|
Italian |
1396816 |
|
Norwegian |
1396818 |
|
Portuguese |
1396819 |
|
Spanish |
1396820 |
|
Spanish Speaking |
1396811 |
|
Swedish/Finish |
1396821 |
|
Swiss/French |
1396822 |
|
Swiss/German |
1396823 |
|
Turkish |
1396829 |
|
U.K. English |
1396824 |
|
U.S. English |
1396181 |
Numeric Keypad and Mouse:
|
U.S. |
1396182 |
|
Arabic |
1396806 |
|
Canadian French |
1396800 |
|
French |
1396801 |
|
German |
1396802 |
|
Greek |
1396807 |
|
Italian |
1396803 |
|
Spanish |
1396804 |
|
Swedish/Finland |
1396805 |
|
Swiss/French |
1396809 |
|
Swiss/German |
1396808 |
|
Trackpoint (Model L40 SX) |
1397090 |
|
Search Keywords |
| |
|
Document Category |
| |
|
Date Created |
09-12-96 | |
|
Last Updated |
21-01-98 | |
|
Revision Date |
21-01-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
Laptop L40 | |
|
Machine Type |
8540, 8543 | |
|
