Parts Information

Document ID: GSMH-3ASK7Z

PC Server 704 - Cable Parts Information

Applicable to: World-Wide

Cables

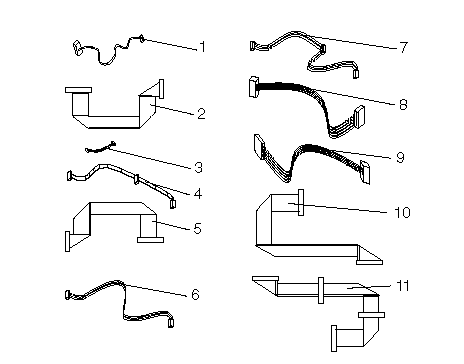

Index	Cables (PC Server 704 - Type 8650)	FRU. No.
1	Alarm Cable, with Switch (Models 4M0, 4BW, 5M0, 6MM, 7AX)	75H9053
2	Diskette Drive Cable (Models 4M0, 4BW, 5M0, 6MM, 7AX)	75H9041
3	Front Panel Cable (Models 4M0, 4BW, 5M0, 6MM, 7AX)	75H9049
4	Power Cable, connects from Power Supply Board to Hard Disk Drive Backplane (Models 4M0, 4BW, 5M0, 6MM, 7AX)	75H9043
5	LCD Cable (Models 4M0, 4BW, 5M0, 6MM, 7AX)	75H9021
6	Power Cable 2 X, connects to CD-ROM Drive (Models 4M0, 4BW, 5M0, 6MM, 7AX)	75H9061
7	Power Cable 3 X , connects to Diskette Drive (Models 4M0, 4BW, 5M0, 6MM, 7AX)	75H9059
8	Power Cable, 14 pin, connects from Power Supply Board to System Board (Models 4M0, 4BW, 5M0, 6MM, 7AX)	75H9057
9	Power Cable, 20 pin, connects from Power Supply Board to System Board (Models 4M0, 4BW, 5M0, 6MM, 7AX)	75H9055
10	SCSI Wide Cable (Models 4M0, 4BW, 5M0, 6MM, 7AX)	75H9045
11	SCSI Wide-Narrow Cable 4 X, connects from System Board Adaptec to CD-ROM (Models 4M0, 4BW, 5M0, 6MM, 7AX)	75H9108
	CD-ROM IDE Cable (Models 5M0, 6MM)	12J3346
	External SCSI Cable, for RAID Adapter (Models 4M0, 5M0, 6MM)	76H0446
	Cable, connects from Power Supply Board to Hard Disk Drive Backplane (Models 4M0, 4BW, 5M0, 6MM, 7AX)	75H9051
	SCSI Narrow Hot-Swap Cable (Models 4M0, 4BW, 5M0, 7AX)	75H9047

	Search Keywords
	Document Category	Cables
	Date Created	12-06-96
	Last Updated	19-03-99
	Revision Date	19-03-2000
	Brand	IBM PC Server
	Product Family	PC Server 704
	Machine Type	8650
	Model	Various
