Parts Information

Document ID: RMIE-3AKEKD

TP 760E - (CD non upgradable model) FRU parts listing

Applicable to: World-Wide

Parts Listing :

Model 760E CD NON-UPGRADABLE TYPE

Check the Model
There are two models of 760E: both come with an FDD built-in, but only one model is upgradable with internal CD-ROM.

• The non-upgradable model 760E model is 48.7 mm (1.92 in.) thick. It is thick enough to install only a FDD.
• The upgradable model 760E model is 210 mm (2.14 in.) thick. It is thick enough to install a CD-ROM.

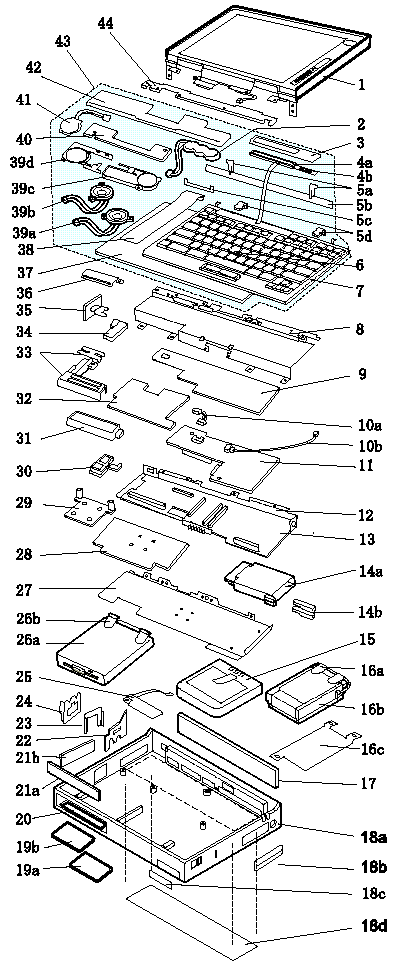

Index	System Unit	FRU PN
1	LCD Assembly (12.1 TFT)	29H9226
2	Standby Battery	29H9497
3	LCD Indicator Assembly Cover	69H8403
4a	LCD Indicator Assembly	29H9220
4b	Volume Knob	69H8404
5a	See Keyboard Misc. parts
5b	Keyboard Foot	39H7038
5c	Keyboard FPC Bracket	39H7035
5d	See Keyboard Misc. parts
6	TrackPoint III Cap	click here
7	Keyboard (See Keyboard Section)	see below
8	Upper Shield Case	29H9212
9	Video Card	39H6226
10a	Volume Connection Cable	29H9211
10b	Mic Connection Cable	29H9210
11	DSP Card	29H9205
12	Rear Shield Case	29H9200
13	System Board	11J8234
14a	PC Card Slot	46H6031
14b	Eject Button	46H6028
15	Battery Pack (Li-ion)	29H9232
16a	HDD Removable Strap	29H9236
16b	Hard Disk Drive (810 MB) (U.S.-9546, model U4B)	29H9366
	Hard Disk Drive (1.08 GB) (U.S.-9546, model U4A)	29H9367
16c	EMI Sheet	39H7031
17	Rear Connector Door	29H9185
18a	Base Cover For Japan	39H6249 39H6234
18b	PC Card Door	29H9238
18c	Name Label	66G9228
18d	Thermal Rubber Sheet	82H8966
19a	DIMM Cover	69H8422
19b	DIMM Adapter Card (8 MB) (U.S.-9546, model U4A)	83H7126
	DIMM Adapter Card (Blank) (U.S.-9546, model U4B)	83H7124
20	Lower Spacer	29H9194
21a	FDD Blank Bezel FDD Bezel	29H9239 29H9196
21b	Option Cover	29H9193
22	AV Cover	29H9189
23	Modem Cover Lock	39H7028
24	Modem Cover	39H7030
	Blank Cover for EMEA	29H9187
25	Front IR Assembly	29H9215
26a	Diskette Drive (3-mode)	29H9230
	Diskette Drive (4-mode, for Japan)	29H9372
26b	Diskette Drive Removable Strap	29H9237
27	Lower Shield	29H9202
28	CPU Card (120 MHz, Pentium) (U.S.-9546, model U4B)	11J9672
	CPU Card (133 MHz, Pentium) (U.S.-9546, model U4A)	82H8897
29	Heat Sink	39H7006
30	See Misc. Parts
31	Internal DAA Assembly	12J1571
32	DC/DC Card	83H5375
33	See Misc. Parts
34	Power Switch Actuator	29H9209
35	Power Switch Button	29H9191
36	Rear IR Assembly	29H9214
37	Keyboard Base	29H9218
38	Keyboard Cable	29H9222
39a	Speaker (right)	129H9225
39b	Speaker (left)	39H6983
39c	Speaker Holder (right)	39H7033
39d	Speaker Holder (left)	39H7034
40	Keyboard Card	29H9221
41	Backup Battery	29H9506
42	Palm Rest For Japan	29H9219 39H7032
43	Keyboard Unit (See Keyboard Unit Section)
44	Top Cover	29H9183
	AC Adapter (35W) For U.S/Canada/LA/Japan For EMEA/AP	85G6705 12J1448
	Keyboard Misc. Parts	39H7105
	Misc. Parts (Includes the following:) Modem Holder Modem Lever DSP Holder Rear IR Lens	29H9234

Keyboard

Arabic	29H9076
Belgian	29H9074
Canadian French	29H9082
Danish	29H9073
Dutch	29H9071
French	29H9067
German	29H9065
Greek	29H9080
Hebrew	29H9077
Italian	29H9069
Japanese	29H9083
New World Spanish	29H9081
Norwegian	29H9075
Portuguese	29H9078
Russian	29H9084
Spanish	29H9072
Swedish / Finnish	29H9070
Swiss	46H5989
Turkish	29H9079
U.K. English	29H9064
U.S. English	29H9063

Keyboard Unit

Arabic	29H9408
Belgian	29H9406
Canadian French	29H9414
Danish	29H9405
Dutch	29H9403
French	29H9399
German	29H9397
Greek	29H9412
Hebrew	29H9409
Italian	29H9401
Japanese	29H9415
New World Spanish	29H9413
Norwegian	29H9407
Portuguese	29H9410
Russian	29H9416
Spanish	29H9404
Swedish / Finnish	29H9402
Swiss	46H5990
Turkish	29H9411
U.K. English	29H9396
U.S. English	29H9395

	Search Keywords
	Document Category	Hardware Maintenance Information
	Date Created	01-08-96
	Last Updated	02-04-99
	Revision Date	03-03-2000
	Brand	IBM ThinkPad
	Product Family	ThinkPad 760E
	Machine Type	9546
	Model	Various
