Service Hints & Tips |
Document ID: GSMH-3FHESR |
IBM PC365 - System board
Applicable to: World-Wide
PC 365 (Type 6589) - System Board:
Also see ¿Matrox Graphics Adapter (MGA) Switch Settings— for MGA video adapter locations and switch settings.

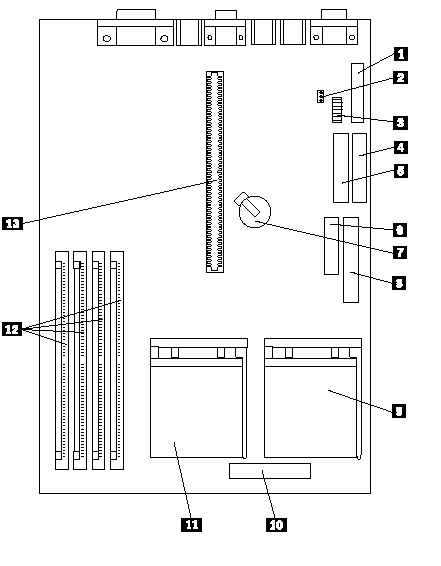

PC 365 (Type 6589) - System Board Locations:
|
1 |
Diskette drive connector |
|
2 |
CMOS, Password Jumper |
|
3 |
Processor, Diskette Switch Settings |
|
4 |
Secondary IDE connector |
|
5 |
Primary IDE connector |
|
6 |
3.3V power connector |
|
7 |
Battery |
|
8 |
Main power connector |
|
9 |
Second processor connector |
|
10 |
Voltage regulator module (VRM) connector for second processor |
|
11 |
Primary processor connector |
|
12 |
Memory connectors |
|
13 |
Riser-card connector |
PC 365 (Type 6589) Switch Settings:
The following table contains the switch setting information. (D) indicates the default setting.
|
Description |
Setting |
|
180 MHz Processor |
1, 3, 4, 5 On |
|
200 MHz Processor |
1, 3, 4, 6 On |
|
Normal Diskette Operation |
8 On (D) |
|
Read-only Diskette Operation |
8 Off |
|
Password/CMOS Enabled |
J8 1-2 (D) |
|
Password/CMOS Erase |
J8 2-3 |
|
