TP 560X - 1020 DIMM Card (if installed)
Applicable to: World-Wide

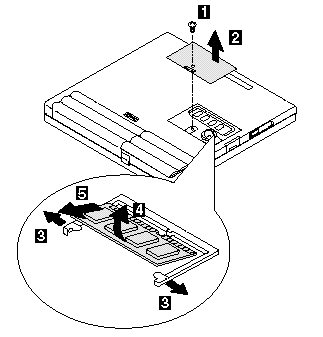

1020 DIMM Card (If installed):
Turn the computer upside down.
|
Step |
Length (Quantity) |
Torque |
|
1 |
7 mm, nylon coating (1) |
4.0 kgcm |
|
Note: |
Do not use the screw that you have removed. |
|
Use a new screw and tighten the screw to the torque specification shown. |
|
