Service Hints & Tips |
Document ID: MNOK-3ZXQR8 |
Aptiva - 2136 Removals and replacements - Cover
Applicable to: World-Wide
- Disconnect the system unit power cord.
- Release the lock that secures the cover at the back of the unit by pressing it toward the unlocked icon.
- Slip your hand underside the front panel and pull on the handle to fully release the cover.
- While still holding the handle, slide the cover forward to remove it completely. The cover slides along grooves that run on the sides of the unit.
- Touch the bare metal frame of your system unit to dissipate the static electricity from your body. Do not touch any of the components inside the frame before you touch the frame. Do not touch any component with a voltage warning label.

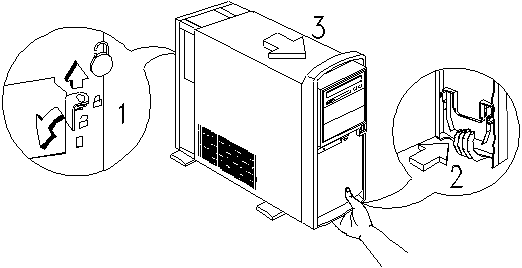

Figure 4- 2 Pull Out on the Cover
|
