Service Hints & Tips |
Document ID: GSMH-3EQE9Y |
TP 365X/XD - 1090 Indicator Card
Applicable to: World-Wide

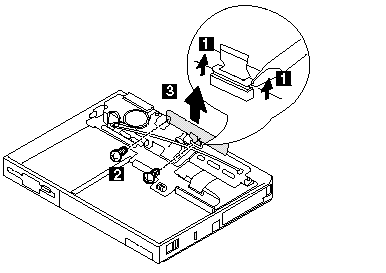

1090 Indicator Card:
Battery Pack (1020)
Insulator Sheet (1025)
Diskette Drive / CD-ROM Drive (1040)
Hard Disk Drive (1050)
Top Cover (1060)
Keyboard Unit (1070)
LCD Assembly (1080)
LCD Panel (1085)
|
Step |
Screw Location (Quantity) |
Length |
|
2 |
Indicator Card (2) |
M2 x 4 mm |
Note:
Make sure you use the correct screws when replacing.
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
28-02-97 | |
|
Last Updated |
28-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 365X/XD | |
|
Machine Type |
2625 | |
|
Model |
Various | |
|
