Service Hints & Tips |
Document ID: MNOK-3ZXRL4 |
Aptiva - 2136 Removals and replacements - Bay 6 (3.5-In. Internal Bay)
Applicable to: World-Wide
- Disconnect any cables on the drive (Note location of cables).
- Remove the screws.
- Slide out the hard disk drive.

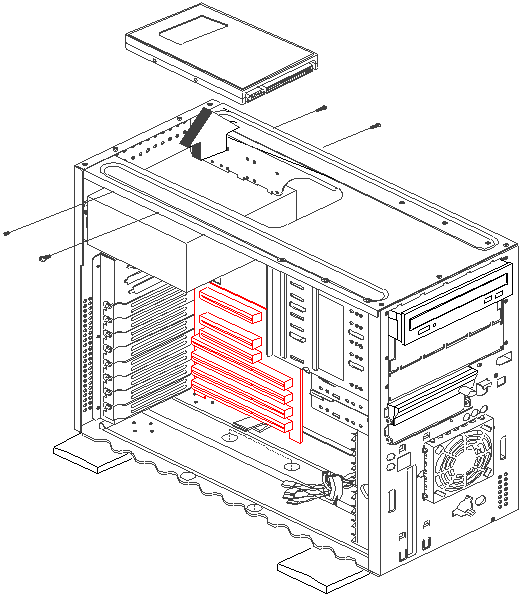

Figure 4- 12 Remove in Bay 6
When installing a drive in bay 6:
- Position a hard disk drive over bay 6 such that the signal and power connectors face the front panel.
- Secure the drive with the appropriate screws.
- Connect the drive cables.

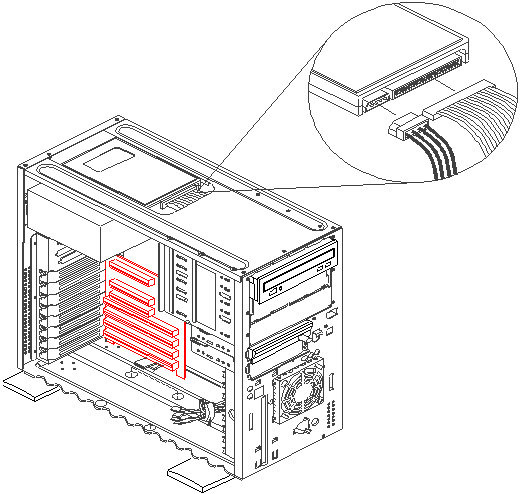

Figure 4- 13 Reattach The Cables
|
