TP 3550 Expansion Unit - Parts Listing

57.410 bytes

Parts Information

Document ID: GSMH-3D7DQB

This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose.

TP 3550 Expansion Unit - Parts Listing

Applicable to: World-Wide

Parts Listing:

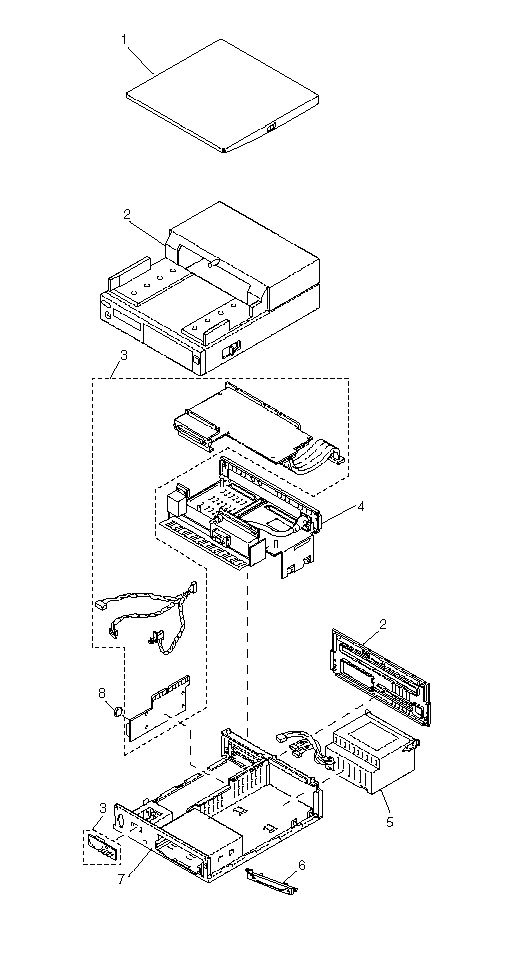

Index 3550 Expansion Unit:

1

Display Stand

49G2664

2

Main Cover (Model 001)
Front Panel ASM
Rear Panel
Left and Right Side Guide ASM
Release Mechanism

49G2673

Key Lock w/ bracket Docking Cover

66G6001

2

Main Cover (Model 002)
Front Panel ASM Rear Panel
Left and Right Side Guide ASM
Release Mechanism

66G9940

Key Lock w/ bracket Docking Cover

66G6001

3

System Board (Model 001)

49G2662

System Board-Main

66G6006

System Board-Sub

66G6004

Board ASM, LED

66G6002

Wire ASM LED/Power/Micro Sensor

66G6003

Device Cable, Internal SCSI 50 pin

66G6005

3

System Board (Model 002)

66G9941

System Board-Main

66G6011

System Board-Sub

66G6009

Board ASM, LED

66G6007

Wire ASM, LED/Power/Micro Sensor

66G6008

Device Cable, Internal SCSI 50 pin

66G6010

4

Docking Frame (Model 001) Cable ASM, VGA

49G2659

4

Docking Frame (Model 002) Power Switch Control Actuator Cable ASM, VGA

49G2666

5

Power Supply (Model 001)

49G2663

5

Power Supply (Model 002)

49G2668

6

Attachment Plate

49G2660

7

Base Frame
Left and Right Rails
Cover, LED Board
Guide, Card Guide, Adapter Bracket
Slider, Stopper Lock
Spring, Slider
Two Thumb Screws
Four Foot Rubbers

49G2658

8

Backup Battery, Lithium

49G26611

Miscellaneous Parts

49G2665

320MB Hard Disk Drive (Option)

85F0011

400MB Hard Disk Drive (Option)

85F0012

Note:
When installing the 320MB or 400MB hard disk drive in a 3550 Expansion Unit, use the hard disk drive slide assembly (FRU 85F0035) supplied with the option.

Search Keywords

Document Category

Hardware Maintenance Information

Date Created

10-01-97

Last Updated

16-03-98

Revision Date

12-03-99

Brand

IBM ThinkPad

Product Family

ThinkPad Docking Stations

Machine Type

3550

Model

Various

TypeModel

Retain Tip (if applicable)

N/A

Reverse Doclinks
and Admin Purposes

1	Display Stand	49G2664
2	Main Cover (Model 001) Front Panel ASM Rear Panel Left and Right Side Guide ASM Release Mechanism	49G2673
	Key Lock w/ bracket Docking Cover	66G6001
2	Main Cover (Model 002) Front Panel ASM Rear Panel Left and Right Side Guide ASM Release Mechanism	66G9940
	Key Lock w/ bracket Docking Cover	66G6001
3	System Board (Model 001)	49G2662
	System Board-Main	66G6006
	System Board-Sub	66G6004
	Board ASM, LED	66G6002
	Wire ASM LED/Power/Micro Sensor	66G6003
	Device Cable, Internal SCSI 50 pin	66G6005
3	System Board (Model 002)	66G9941
	System Board-Main	66G6011
	System Board-Sub	66G6009
	Board ASM, LED	66G6007
	Wire ASM, LED/Power/Micro Sensor	66G6008
	Device Cable, Internal SCSI 50 pin	66G6010
4	Docking Frame (Model 001) Cable ASM, VGA	49G2659
4	Docking Frame (Model 002) Power Switch Control Actuator Cable ASM, VGA	49G2666
5	Power Supply (Model 001)	49G2663
5	Power Supply (Model 002)	49G2668
6	Attachment Plate	49G2660
7	Base Frame Left and Right Rails Cover, LED Board Guide, Card Guide, Adapter Bracket Slider, Stopper Lock Spring, Slider Two Thumb Screws Four Foot Rubbers	49G2658
8	Backup Battery, Lithium	49G26611
	Miscellaneous Parts	49G2665
	320MB Hard Disk Drive (Option)	85F0011
	400MB Hard Disk Drive (Option)	85F0012
