TP 340 - System Board Locations
Applicable to: World-Wide

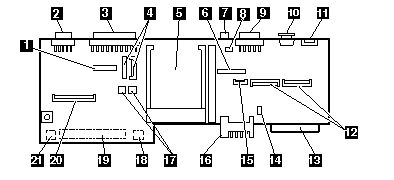

System Board:
|
1 |
Internal Modem Card connector (Modem model only) |
|
2 |
External Display Connector |
|
3 |
Parallel Connector |
|
4 |
LCD connectors |
|
5 |
PCMCIA Slot |
|
6 |
Indicator Card Connector |
|
7 |
Reset Pushbutton |
|
8 |
LCD Inverter Power Connector (340CSE) |
|
9 |
Serial Connector |
|
10 |
Power Jack |
|
11 |
External Input Device Connector |
|
12 |
Keyboard Signal Connector |
|
13 |
Hard Disk Drive Connector |
|
14 |
Speaker Connector (340CSE only) |
|
15 |
Keyboard TrackPoint II/III Connector |
|
16 |
Battery Pack Terminal |
|
17 |
POP Terminal |
|
18 |
Standby Battery Connector |
|
19 |
IC DRAM Card Connector |
|
20 |
Diskette Drive Interface |
|
21 |
Backup Battery Connector |
|
