Service Hints & Tips |
Document ID: MIGR-47N53Y |
TP 570 - 2010 LCD front bezel removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

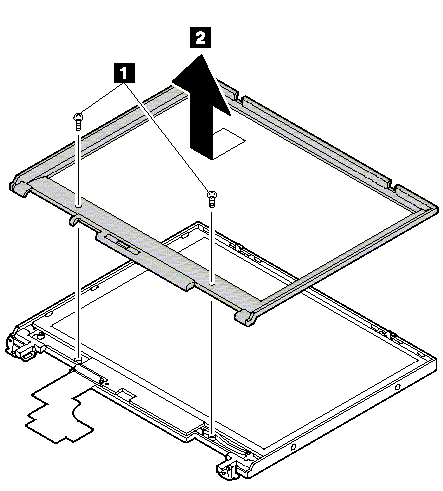

2010 LCD front bezel
|
Step |
Screw (Quantity) |
Color |
Torque |
|
1 |
M2.5 x 3 mm (2) |
Yellow |
4 kgcm |

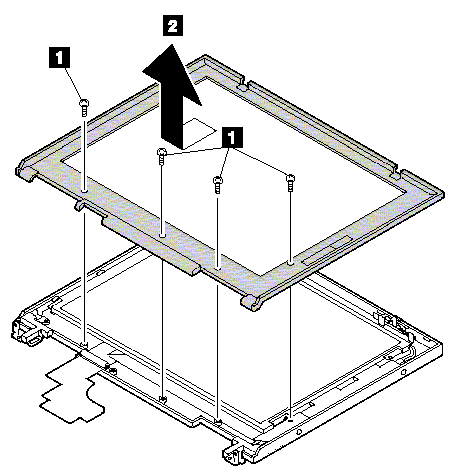

12.1-inch SVGA TFT LCD
|
Step |
Screw (Quantity) |
Color |
Torque |
|
1 |
M2.5 x 3 mm (4) |
Yellow |
4 kgcm |
|
