Service Hints & Tips |
Document ID: MIGR-47N542 |
TP 570 - 2030 LCD panel removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

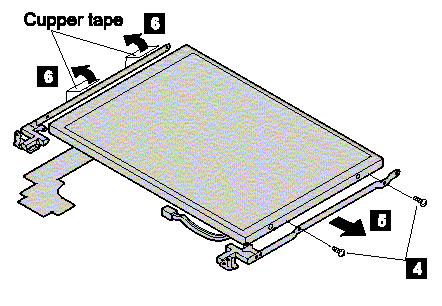

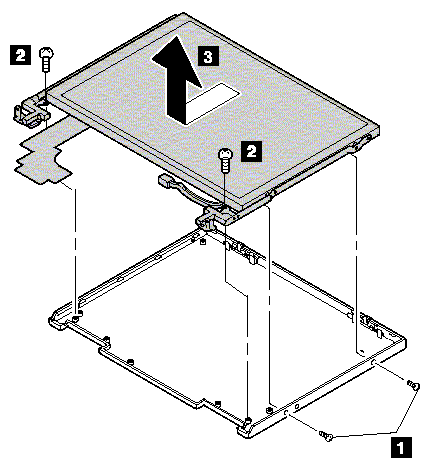

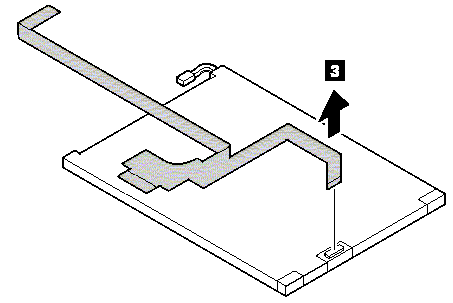

2030 LCD panel
13.3-inch XGA TFT LCD
|
Step |
Screw (Quantity) |
Color |
Torque |
|
1 |
M2.5 x 3 mm (2) |
Yellow |
4 kgcm |
|
3 |
M2.5 x 3 mm (2) |
Yellow |
4 kgcm |

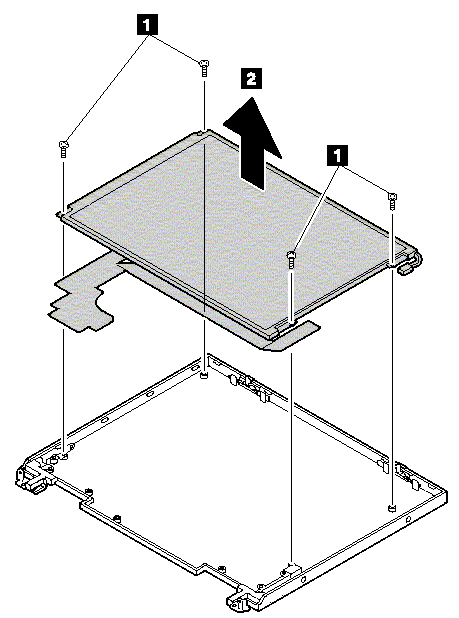

12.1-inch SVGA TFT LCD
|
Step |
Screw (Quantity) |
Color |
Torque |
|
1 |
M2.5 x 3 mm (4) |
Yellow |
4 kgcm |
|
