Parts Information

Document ID: AGRN-46ZTJW

TP 760C - 10.4 SVGA LCD FRU parts listing

Applicable to: World-Wide

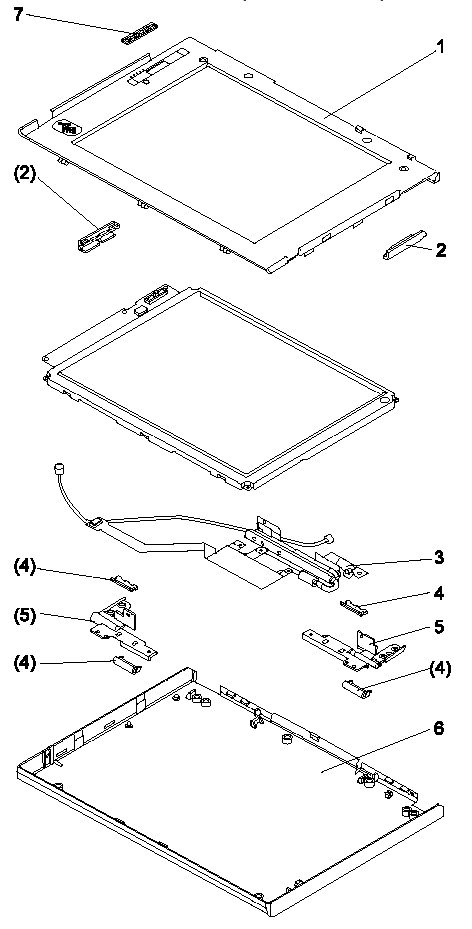

ThinkPad 760C 10.4 SVGA LCD FRU parts list for PN 29H9227

LCD Unit, 10.4 SVGA (P/N 29H9227)

LCD Cover Group	46H5712
Note Includes the following parts: 1 Front Cover 2 Guide (R/L) 4 Hinge Cover (R/L) 6 Rear Cover 7 Slide Knob - Screw Cap - Screw - Tape

Hinge Group	46H5715
Note Includes the following parts: 5 Hinge (R/L) - Screw Cap

Interface Cable Assembly	46H5719
Note Includes the following parts: 3 Interface Cable Assembly - Screw Cap

	Search Keywords
	Document Category	Hardware Maintenance Information
	Date Created	16-04-99
	Last Updated	19-05-99
	Revision Date
	Brand	IBM ThinkPad
	Product Family	ThinkPad 760C
	Machine Type	9546
