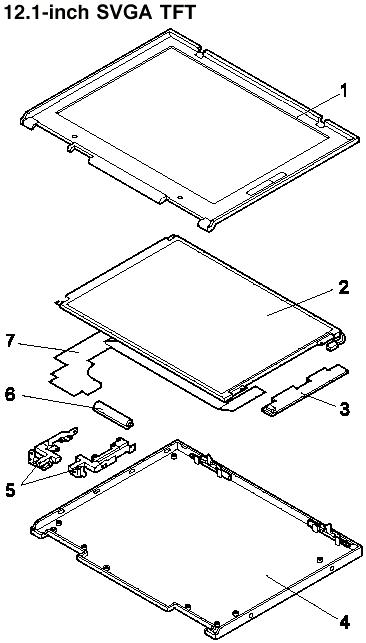

TP 570 - LCD FRU parts listing - 12.1 SVGA
Applicable to: World-Wide
|
Index |
System unit |
|
|
|
LCD unit |
05K9905 |
|
1 |
LCD front bezel |
05K6076 |
|
2 |
LCD panel |
(see LCD unit above) |
|
3 |
Inverter card |
10L1248 |
|
4 |
LCD Rear cover |
05K6074 |
|
5 |
Hinges |
05K6078 |
|
6 |
LCD miscellaneous parts kit |
05K6080 |
|
7 |
LCD cables |
05K2835 |
|
