TP 570 - 1190 I/O Connector cable or system board removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

1190 I/O Connector cable or system board

• Battery pack (1010)
• Backup battery (1020)
• DIMM (1030)
• Hard disk drive (1040)
• Keyboard (1050)
• Center cover (1060)
• Modem card (1070)
• Frame and power switch (1080)
• Audio card (1090)
• Modem jack (1100)
• Speaker (1110)
• Audio cable (1120)
• PC Card slots (1130)
• HDD cable (1140)
• Upper shield (1150)
• LCD unit (1170)

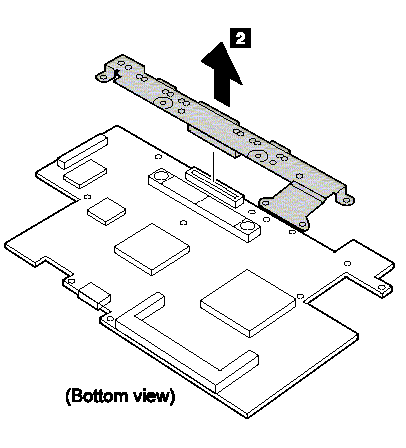

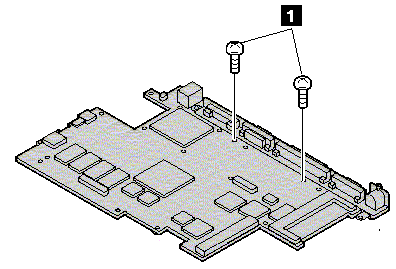

Step	Screw (Quantity)	Color	Torque
1	M2.5 x 4.8 mm (2)	Black	4 kgcm
