Parts Information

Document ID: MCGN-46ZNZM

Netfinity 1000 - Parts listing

Applicable to: World-Wide

Source: Hardware Maintenance Manual



System


Index

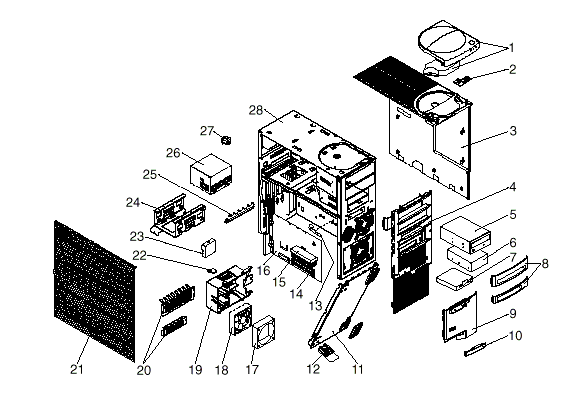

System
(Netfinity 1000 - Type 8477)Models 11Y, 21Y

FRU No.

1

Cover and Handle (Models 11Y, 21Y)

37L7096

2

Power Switch/LED Cable Assembly (Models 11Y, 21Y)

12J4510

3

Top Cover Assembly (Models 11Y, 21Y)

01K1637

4

Front Bezel (Bay Panel) (Models 11Y, 21Y)

12J5548

5

CD-ROM Drive (32X) (Models 11Y, 21Y)
CD-ROM Drive (32X) (Models 11Y, 21Y)
CD-ROM Audio Cable (Models 11Y, 21Y)

02K1119
02K3414
75H9219

6

Optional Hard Disk Drive (see below) (Models 11X, 21X)

7

1.44 MB Diskette Drive (Optional) (Models 11Y, 21Y)
Diskette Drive Cable (Models 11Y, 21Y)

75H9550
76H7340

8

Miscellaneous Blank Bezels (Bay Panels) (Models 11Y, 21Y)

01K1888

9

9 3.5-Inch Bezel (Bay Panel) Assembly (Models 11Y, 21Y)

12J5549

10

Model Plate (Models 11Y, 21Y)

03K9569

11

Bottom Cover Assembly (Models 11Y, 21Y)

03K9587

12

Foot (4 each) (Models 11Y, 21Y)

12J4506

13

System Board Latch and Screw (Models 11Y, 21Y)

01K1612

14

64 MB ECC DIMM (Models 11Y, 21Y)

01K1140

15

400MHz/512 Cache Processor (Models 11Y)
500MHz/512 Cache Processor (Models 21Y)

01K4334
33L1615

16

System Board without Memory, CPU, or Cache (Models 11Y, 21Y)

37L7098

17

Fan Bracket (for 02K2861) (Models 11Y, 21Y)

03K9606

18

92MM Fan Assembly (Models 11Y, 21Y)

02K2861

19

Card Guide (Models 11Y, 21Y)

03K9605

20

EMC kit (Models 11Y, 21Y)

12J4508

21

Access Cover Assembly (Models 11Y, 21Y)

12J5546

22

C2 Switch Cable Assembly (Models 11Y, 21Y)

01K1495

23

AGP Cover (Models 11Y, 21Y)

03K9623

24

3.5-Inch Hard Disk Drive Bracket (Models 11Y, 21Y)

03K9608

25

I/O Clamp (Models 11Y, 21Y)

03K9604

26

Power Supply 330 Watt (Models 11Y, 21Y)

01K9866

27

Keylock Assembly (Models 11Y, 21Y)

12J5102

28

Chassis Assembly (Models 11Y, 21Y)

03K9609

3.5/5.25-Inch DASD Bracket (Models 11Y, 21Y) 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

12J4501

5.25-Inch Picture Frame Bezel (Models 11Y, 21Y)

12J6473

5.25-Inch Hard Disk Drive Tray (Bay 2) (Models 11Y, 21Y)

28L5045

60MM Fan Assembly (Models 11Y, 21Y)

10L5513

IDE (2X) Drive Cable

12J4518

Keyboard (See "Keyboards") (Models 11Y, 21Y)

Miscellaneous Hardware Kit (Models 11Y, 21Y)

03K9603

Miscellaneous Optional Bezel (Bay Panel) (Models 11Y, 21Y)

12J5551

Miscellaneous Parts Kit (Models 11Y, 21Y)
Rubber Grommets (4 each)

  • M4x12 Hex Head Screws (2 each)
  • M3x5 Slotted Screws (4 each)
  • I/O Bracket (2 each)
  • Hex Head Screws (4 each)
  • Slotted M3.5 Screws (4 each)

10L5600

Mouse (Models 11Y, 21Y)

76H0889

Power Switch Cover (Models 11Y, 21Y)

03K9657

Riser Card (Models 11Y, 21Y)

11L1567

Riser Supports, Front and Rear (Models 11Y, 21Y)

02K2766

SCSI Card (Models 11Y, 21Y)

10L7095

SCSI Cable (Models 11Y, 21Y)

01K1467

SCSI LED Cable (Models 11Y, 21Y)

76H7344

Speaker Assembly (Models 11Y, 21Y)

03K9607

System Board Rail (Models 11Y, 21Y)

03K9626


Options


Option

FRU No.

4.5 GB Hard Disk Drive

10L6084

9.1 GB SCSI Hard Disk Drive

10L6085

9.1 GB SCSI Hard Disk Drive

36L8648
