Netfinity 1000 - Cabling

Applicable to: World-Wide

Source: Hardware Maintenance Manual

Cabling
Before cabling the server:

• Make sure that you have an adequate number of properly grounded electrical outlets for the server, monitor, and any other options that you intend to install.
• Place the server in a location that is dry. Rain or spilled liquids might damage the server.

• Note To allow for air circulation, be sure to maintain the clearances.





  To cable the server:

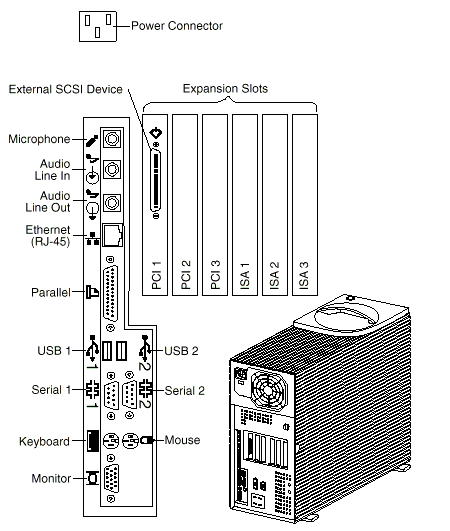

  1. Use the following illustration to cable the server.

  For information about Ethernet cables, see Specifications (Ethernet cable).



  2. Connect all power cords to electrical outlets.
