Service Hints & Tips |
Document ID: MIGR-47MHCA |

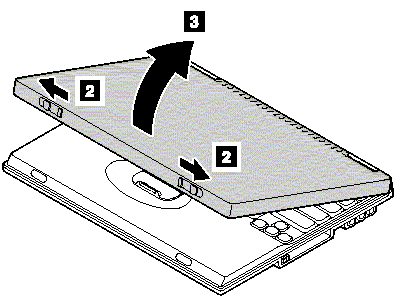

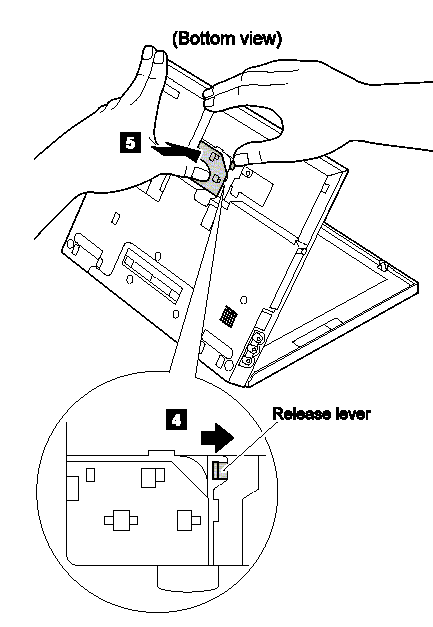

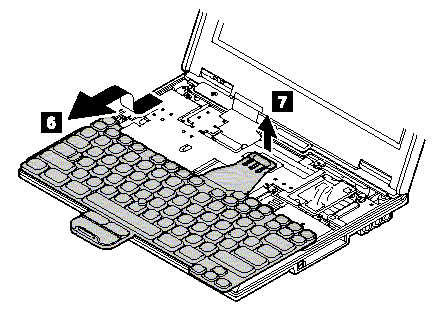

TP 570 - 1050 Keyboard removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
1050 Keyboard
Step |
Screw (Quantity) |
Color |
Torque |

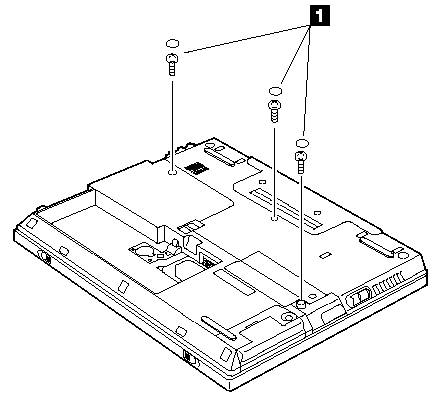

1 |
M2.5 x 9 mm (3) |
Black |
4 kgcm |
