Service Hints & Tips |
Document ID: MIGR-47MHK2 |
TP 570 - 1150 Upper shield removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

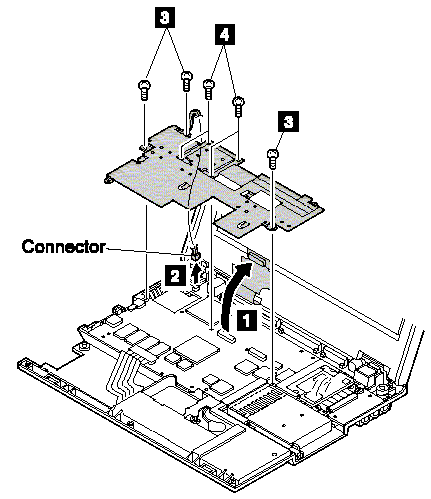

1150 Upper shield
Step |
Screw (Quantity) |
Color |
Torque |
3 |
M2.5 x 4.8 mm (3) |
Black |
4 kgcm |
4 |
M2 x 9 mm (4) |
Yellow |
2 kgcm |
Search Keywords |
| |
Document Category |
Hardware Maintenance Information | |
Date Created |
06-05-99 | |
Last Updated |
06-05-99 | |
Revision Date |
17-05-2000 | |
Brand |
IBM ThinkPad | |
Product Family |
ThinkPad 570 | |
Machine Type |
All | |
Model |
All | |
