Service Hints & Tips

Document ID: MIGR-47MHTW

TP 570 - 1160 Fan removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

1160 Fan

• Battery pack (1010)
• Hard disk drive (1040)
• Keyboard (1050)
• Center cover (1060)
• Frame and power switch (1080)
• Upper shield (1150)

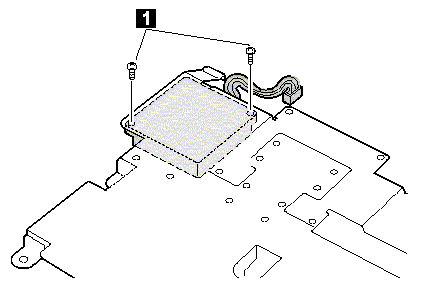

Step	Screw (Quantity)	Color	Torque
1	M2 x 9 mm (2)	Black	2 kgcm

	Search Keywords
	Document Category	Hardware Maintenance Information
	Date Created	06-05-99
	Last Updated	06-05-99
	Revision Date	17-05-2000
	Brand	IBM ThinkPad
	Product Family	ThinkPad 570
	Machine Type	All
	Model	All
