Parts Information

Document ID: AGRN-46ZSR9

TP 760C/CD/EL/ELD/E/ED - 12.1 SVGA LCD FRU parts listing

Applicable to: World-Wide

12.1 SVGA LCD FRU parts list for PN 29H9226, ASM P/N 29H9029 and ASM P/N 73H6599

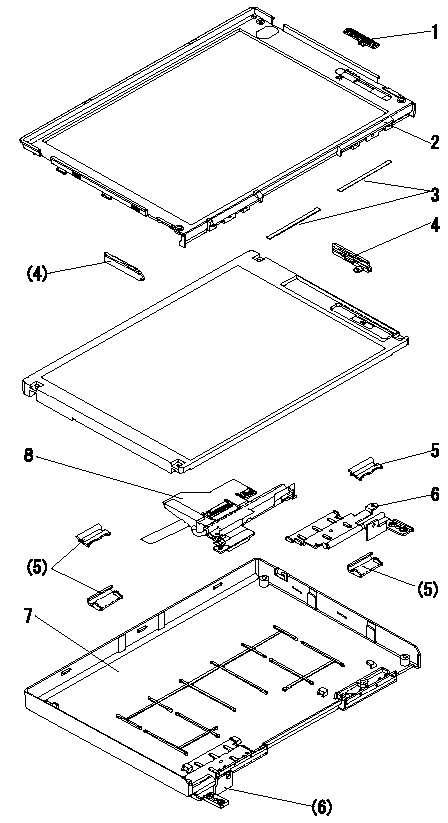

LCD Unit, 12.1 SVGA (P/N 29H9226, ASM P/N 29H9029

LCD Cover Group	46H5710
Note Includes the following parts: 1 Slide Knob 2 Front Cover 3 Screw Cap, Large 4 Guide (R/L) 5 Hinge Cover (R/L) 7 Rear Cover - Screw Cap - Screw - Tape

Hinge Group	46H5714
Note Includes the following parts: 6 Hinge (R/L) - Screw Cap

Interface Cable Group	46H5717
Note Includes the following parts: 8 Interface Cable Assembly - Screw Cap

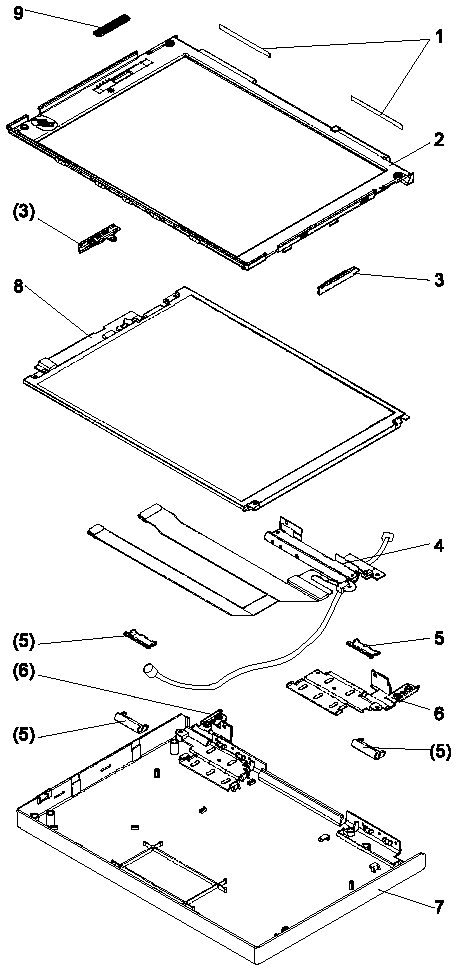

LCD Unit, 12.1 SVGA (P/N 29H9226, ASM P/N 73H6599)

LCD Cover Group	46H5711
Note Includes the following parts: 1 Screw Cap, Large 2 Front Cover 3 Guide (R/L) 5 Hinge Cover (R/L) 7 Rear Cover 8 Slide Knob - Screw Cap - Screw - Tape

Hinge Group	46H5714
Note Includes the following parts: 6 Hinge (R/L) - Screw Cap

Interface Cable Group	46H5718
Note Includes the following parts: 4 Interface Cable Assembly - Screw Cap

	Search Keywords
	Document Category	Hardware Maintenance Information
	Date Created	16-04-99
	Last Updated	19-05-99
	Revision Date
	Brand	IBM ThinkPad
	Product Family	ThinkPad 760C, ThinkPad 760E, ThinkPad 760CD, ThinkPad 760ED, ThinkPad 760EL/ELD
	Machine Type	9546, 9547
	Model	various
