Service Hints & Tips |
Document ID: MIGR-47N53V |
TP 570 - 1180 System board removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

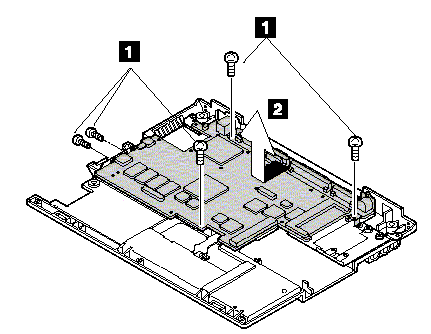

1180 System board assembly
Step |
Screw (Quantity) |
Color |
Torque |
1 |
M2.5 x 4.8 mm (5) |
Black |
4 kgcm |
