Service Hints & Tips |
Document ID: MNOK-3UUMGP |
Aptiva - 2162 - How to connect CD-ROM audio cable
Applicable to: World-Wide

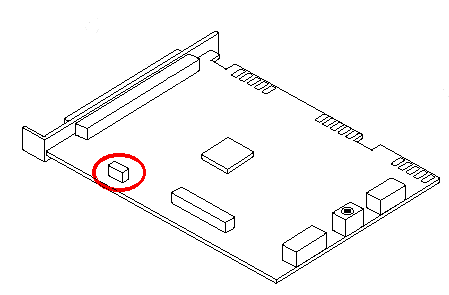

On the media console host adapter locate socket J11, circled in red below, and connect one end of the audio cable.

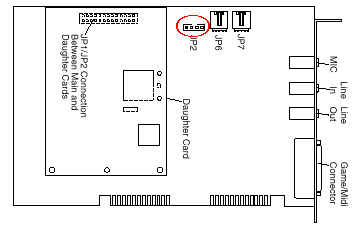

On the sound card locate socket JP2, circled in red below, and connect the other end of the audio cable.
|
Search Keywords |
| |
|
Hint Category |
Audio, CD-ROM Drives, Hardware Installation/Configuration, Cables | |
|
Date Created |
26-05-98 | |
|
Last Updated |
11-01-99 | |
|
Revision Date |
11-01-2000 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2162 | |
|
Model |
28R; 29R; 30R; 31R; 33R; 35R; 37R; 41R; 54S; 56S; 57S; 58S; B86; B87; B97; D81; D91; E81; E91; G86; G96; G97; H86; H96; P81; P91; Q3C; Q81; Q91; S35; S3C; S8C; S8H; S9C; S9H; S9M; SIB; U81; U91; V86; V96; X8C; X9D | |
|
