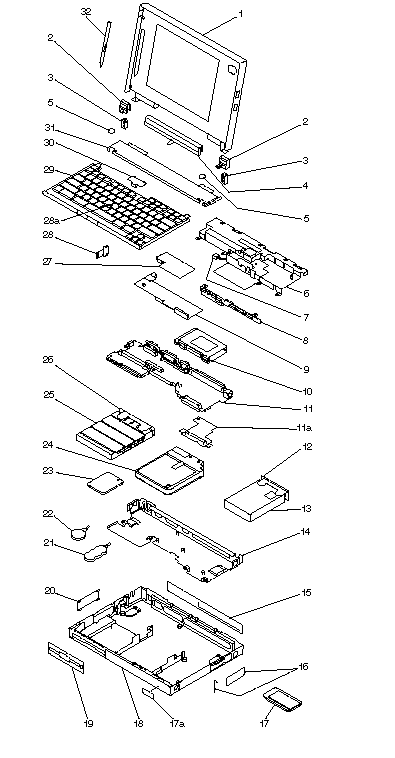

TP 750 - Parts Listing
Applicable to: World-Wide
Model 750x:
System Unit (750x):
|
Index | ||
|
1 |
LCD Assembly (750)1 |
66G3710 |
|
For Germany (Gray)1 |
66G3711 | |
|
LCD Assembly (750C, 750Ce)1 |
66G5058 | |
|
For Germany (Gray)1 |
66G5083 | |
|
LCD Assembly (750P)1 |
66G5059 | |
|
For Germany (Gray)1 |
66G5084 | |
|
LCD Assembly (750Cs) |
66G6210 | |
|
For Germany (Gray) |
66G6211 | |
|
2 |
Hinge Cover (750) |
66G5048 |
|
For Germany (Gray) |
66G5077 | |
|
Hinge Cover (750C, 750Cs, 750Ce) |
66G5047 | |
|
For Germany (Gray) |
66G5076 | |
|
Hinge Cover (750P) |
66G5049 | |
|
For Germany (Gray) |
66G5078 | |
|
3 |
Hinge Bracket, Right, Left |
66G5057 |
|
4 |
Status Indicator Assembly (750) |
66G5034 |
|
For Germany (Gray) |
66G5072 | |
|
Status Indicator Assembly (750C) |
66G5033 | |
|
For Germany (Gray) |
66G5071 | |
|
Status Indicator Assembly (750P) |
66G5035 | |
|
For Germany (Gray) |
66G5073 | |
|
Status Indicator Assembly (750Cs) |
66G6321 | |
|
For Germany (Gray) |
66G6324 | |
|
Status Indicator Assembly (750Ce) |
66G9222 | |
|
For Germany (Gray) |
66G9223 | |
|
5 |
Screw Cover |
66G5046 |
|
For Germany (Gray) |
66G5075 | |
|
6 |
Speaker Shield Assembly |
66G5041 |
|
7 |
Speaker (Includes speaker holder) |
66G3754 |
|
8 |
Interposer Card (750, 750C, 750Cs,750P) |
66G5044 |
|
Interposer Card (750Ce) |
66G9242 | |
|
9 |
DC/DC Card (750, 750C, 750Cs, 750P) |
66G5038 |
|
DC/DC Card (750Ce) |
84G4329 | |
|
DC/DC Card (750Ce, 25/75 MHz) |
66G9267 | |
|
10 |
PCMCIA Slot Assembly |
66G5121 |
|
11 |
System Board Assembly |
66G5036 |
|
(750, 750C, 750P)1 | ||
|
System Board Assembly (750Cs)1 |
66G6209 | |
|
For Germany |
66G6211 | |
|
System Board (750Ce)1 |
66G9224 | |
|
11a |
Processor Card (750Ce) |
66G9225 |
|
Processor Card (750Ce, 25/75 MHz) |
84G4288 | |
|
12 |
HDD Removal Strap |
66G5122 |
|
13 |
Hard Disk Drive (Includes strap, index 12) | |
|
170MB |
66G5066 | |
|
For Germany (Gray) |
66G5085 | |
|
340MB |
66G5068 | |
|
For Germany (Gray) |
66G5087 | |
|
14 |
Lower Shield (750, 750C, 750Cs, 750P) |
66G5043 |
|
Lower Shield (750Ce) |
66G9227 | |
|
15 |
Rear Connector Cover |
66G5050 |
|
For Germany (Gray) |
66G5079 | |
|
16 |
PCMCIA Cover |
66G5053 |
|
For Germany (Gray) |
66G5082 | |
|
17 |
PCMCIA Device | |
|
17a |
Name Label (750, 750C, 750Cs, 750P) |
66G7865 |
|
For Germany (Gray) |
66G7866 | |
|
Name Label (750Ce) |
66G9228 | |
|
For Germany (Gray) |
66G9229 | |
|
18 |
Base Cover Assemblies include coil spring, insulator, foot, power switch knob, holder, | |
|
Base Cover Assembly (750) |
66G5125 | |
|
For Netherlands, Belgium |
66G5131 | |
|
For Germany (Gray) |
66G5128 | |
|
For Japan |
66G4590 | |
|
Base Cover Assembly (750C) |
66G5126 | |
|
For Netherlands, Belgium |
66G5132 | |
|
For Germany (Gray) |
66G5129 | |
|
For Japan |
66G4590 | |
|
Base Cover Assembly (750Ce) |
66G9217 | |
|
For Netherlands, Belgium |
66G9219 | |
|
For Germany (Gray) |
66G9218 | |
|
For Japan |
66G9220 | |
|
Base Cover Assembly (750Cs) |
66G4591 | |
|
For Netherlands, Belgium |
66G4593 | |
|
For Germany (Gray) |
66G4592 | |
|
For Japan |
66G4590 | |
|
Base Cover Assembly (750P) |
66G5127 | |
|
For Netherlands, Belgium |
66G5133 | |
|
For Germany (Gray) |
66G5130 | |
|
For Japan |
66G4590 | |
|
19 |
Bezel, Diskette Drive |
66G5051 |
|
For Germany (Gray) |
66G5080 | |
|
20 |
Cover, Option Bay |
66G5052 |
|
For Germany (Gray) |
66G5081 | |
|
21 |
Standby Battery |
66G3755 |
|
For Netherlands, Belgium |
66G3761 | |
|
For Switzerland |
66G3758 | |
|
22 |
Backup Battery |
66G3764 |
|
23 |
IC DRAM Card (See options) | |
|
24 |
Battery Pack (Nickel Metal Hydride) |
66G2820 |
|
For Netherlands, Belgium |
66G2822 | |
|
For Switzerland |
66G2821 | |
|
For Denmark, Sweden, Finland, Norway |
66G5063 | |
|
25 |
Diskette Drive |
66G5060 |
|
26 |
Diskette Drive Removal Strap |
66G5123 |
|
27 |
Audio Card |
66G5037 |
|
28 |
Keyboard Lock |
66G0031 |
|
28a |
TrackPoint II Cap |
66G6444 |
|
29 |
See Keyboard List | |
|
30 |
Leaf Spring Plate |
66G0041 |
|
31 |
Upper Cover (750) |
66G5045 |
|
For Germany (Gray) |
66G5074 | |
|
Upper Cover (750C, 750Cs, 750Ce) |
66G5094 | |
|
For Germany (Gray) |
66G5095 | |
|
Upper Cover (750P) |
66G6771 | |
|
For Germany (Gray) |
66G6772 | |
|
32 |
Stylus Pen (750P)2 |
66G6695 |
|
For Germany (Gray)2 |
66G6696 |
Keyboard:
|
Arabic |
66G0163 |
|
Belgian |
66G0161 |
|
Canadian French |
66G0169 |
|
Danish |
66G0160 |
|
Dutch |
66G0158 |
|
Finnish |
66G0157 |
|
French |
66G0154 |
|
German (Black) |
66G6402 |
|
German (Gray) |
66G0152 |
|
Greek |
66G0167 |
|
Hebrew |
66G0164 |
|
Icelandic |
66G0170 |
|
Italian |
66G0156 |
|
Japanese |
66G0171 |
|
Latin American |
66G0168 |
|
Norwegian |
66G0162 |
|
Portuguese |
66G0165 |
|
Spanish |
66G0159 |
|
Swedish |
66G0157 |
|
Swiss/French |
66G0155 |
|
Swiss/German |
66G0153 |
|
Turkish |
66G0166 |
|
U.K. English |
66G0151 |
|
U.S. English |
66G0150 |
|
