Service Hints & Tips |
Document ID: GSMH-3BKMN8 |

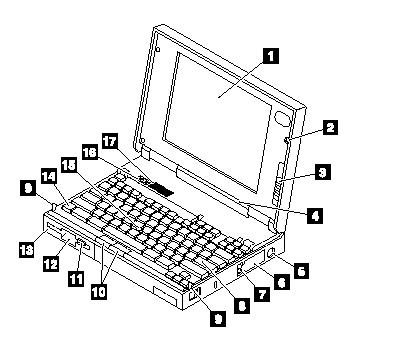

TP 755CE/CSE/CV/CX - Front View Locations
Applicable to: World-Wide
Locations:
Front View:
|
1 |
LCD |
|
2 |
Built-in Microphone |
|
3 |
Brightness Control |
|
4 |
Status Indicator |
|
5 |
External Input Device Connector |
|
6 |
PCMCIA Slot |
|
7 |
PCMCIA Release Lever |
|
8 |
Keyboard |
|
9 |
LCD and Keyboard Latch |
|
10 |
Click Button |
|
11 |
Diskette-Eject Button |
|
12 |
Diskette Drive |
|
13 |
Front Infrared Port |
|
14 |
Fn Key |
|
15 |
TrackPoint III |
|
16 |
Volume Knob |
|
17 |
Built-in Speaker |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
19-11-96 | |
|
Last Updated |
21-04-98 | |
|
Revision Date |
10-04-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 755CE/CSE, ThinkPad 755CX, ThinkPad 755CV, ThinkPad 755CD, ThinkPad 755CDV | |
|
Machine Type |
9545 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
N/A | |
|
