PC Server 520 - Expansion bays diagram (8641-EZ0, EZV, EZL, EZS, EZE)
Applicable to: World-Wide

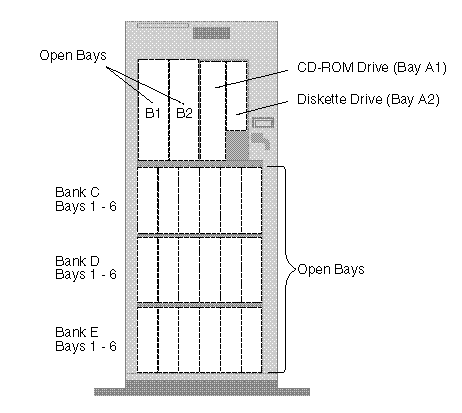

Expansion Bays:
Note:
For additional internal drive information, see 'Internal Drives (Type 8641)— .
The server comes with one 3.5-inch, 1.44MB diskette drive, a SCSI CD-ROM drive, and a removable CD-ROM storage compartment. The number of preinstalled hard disk drives in your server varies according to the model.
CD-ROM Drive:
All models come with a SCSI-2 CD-ROM drive.
Diskette Drive:
The 3.5-inch, 1.44MB diskette drive uses 1MB and 2MB diskettes.
Open Bays:
Your server has a special design that gives you the flexibility to use up to 18 hot-swappable, 3.5-inch hard disk drives. There is additional open space in the top left bay for two more diskette drives or an additional SCSI drive. For installation instructions and information on the types of drives that you can install in each bay, see 'Configuration (Models MZ0, MZV, MZS, MZE, MZL)— or 'Configuration (Models EZ0, EZV, EZL, EZS, EZE)—.
Hard Disk Drive:
All models come with a SCSI-2 adapter. The number and capacity of the hard disk drives varies, depending on your model.
|
