Aptiva - 2168/2176 Removals and replacements - 5.25 Inch drive bays
Applicable to: World-Wide
2025 - 5.25-In. Bays
- Disconnect any cables on the drive.
- Remove the screws.
- Pull out the diskette drive.
When removing a drive, install the new FRU in the same bay. Any of these devices may be installed in any 5.25-in. bay:
- CD-ROM drive (if Multimedia model)
- 5.25-in. diskette drive
- Dual 3.5-in. and 5.25-in. diskette drive

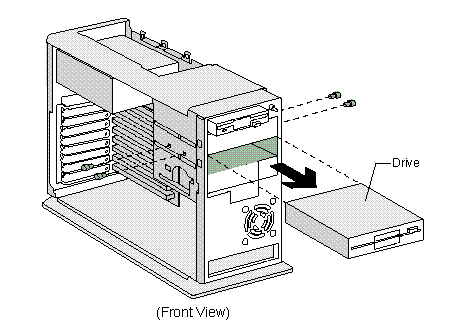

Figure 1-26. Bays 2 and 3 (5.25-In.)
|
