Aptiva - 2159 - How to connect CD-ROM audio cable (non-Mwave)

Applicable to: United States

Locate the jack on the rear of the tower unit indicated by a green color coded label with a musical note icon. An external cable should connect this jack to the media console.

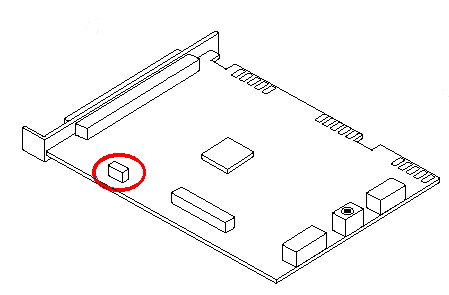

On the media console host adapter locate socket J11, circled in red below, and connect one end of the audio cable.

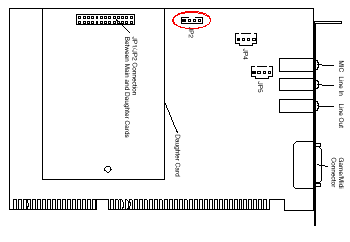

On the sound card locate socket JP2, circled in red below, and connect the other end of the audio cable.
