Aptiva - 2140 System unit (interior) service parts

49.392 bytes

Parts Information

Document ID: JWOE-3KXMNB

Aptiva - 2140 System unit (interior) service parts

Applicable to: China, Hong Kong, Japan, Australia, Canada, United States, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Spain, Sweden, United Kingdom

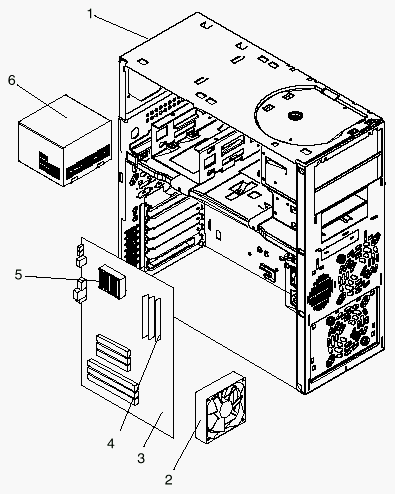

Assembly 2: Machine Type 2140 System Unit -Interior (SL-A)

Asm-
Index

FRU Part
Number

Units

Description

2-1

Machine Type 2140

Note: See Appendix B,
"Model/Monitor Configurations and
FRU Part Numbers" on page B-1 of the HMM for model specifications. The HMM can be found by clicking here -

-1

R

Chassis Assembly

-NS

76H6353

1

Amplifier Signal to System Board Cable

-NS

76H6355

1

Amplifier Audio to System Board Cable

-NS

75H8905

1

Diskette Drive Cable

-NS

76H6351

1

Power Switch to System Board Cable

-NS

12J5980

1

Serial Cable

-NS

76H6367

1

Amplifier Tier 1

-NS

12J5979

1

Serial Interface Module-Home Director

-2

12J6487

1

Fan Assembly

All system board FRUs are shipped without processor or DIMMs. When replacing a system board, remove all FRUs from the original system board and install them on the new system board.

-3

93H5148

1

System Board - Type A-1

-3

93H5225

1

System Board - Type A-2

-3

93H7524

1

System Board - Type A-2 with TV OUT 'J13'

-NS

93F0063

1

Lithium Battery

-NS

33F8354

1

Lithium Battery (EMEA)

-NS

93F0067

1

Jumper Kit

-NS

12J6296

1

Screw Kit

-4

01K1104

1

DIMM, 16 MB SDRAM

-4

01K1105

1

DIMM, 32 MB SDRAM

-5

42H4865

1

P55C-166 MHz Processor

-5

42H4866

1

P55C-200 MHz Processor

-5

12J6236

1

P55C-233 MHz Processor

-NS

76H3658

1

Voltage Regulator for P55C Processor

-5

01K2063

1

Pentium II-233 MHz Processor

-5

01K2064

1

Pentium II-266 MHz Processor

-5

01K2109

1

Pentium II-300 MHz Processor

-5

01K2167

1

Pentium II-333 MHz Processor

-6

75H8991

1

Power Supply-200 Watt

-6

76H4873

1

Power Supply-200 Watt-Japan

Search Keywords

Document Category

Service Parts

Date Created

14-08-97

Last Updated

07-04-99

Revision Date

07-04-2000

Brand

IBM Aptiva

Product Family

Aptiva

Machine Type

2140

Model

All

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Yes

Asm- Index	FRU Part Number	Units	Description
2-1			Machine Type 2140
			Note: See Appendix B, "Model/Monitor Configurations and FRU Part Numbers" on page B-1 of the HMM for model specifications. The HMM can be found by clicking here -
-1		R	Chassis Assembly
-NS	76H6353	1	Amplifier Signal to System Board Cable
-NS	76H6355	1	Amplifier Audio to System Board Cable
-NS	75H8905	1	Diskette Drive Cable
-NS	76H6351	1	Power Switch to System Board Cable
-NS	12J5980	1	Serial Cable
-NS	76H6367	1	Amplifier Tier 1
-NS	12J5979	1	Serial Interface Module-Home Director
-2	12J6487	1	Fan Assembly
			All system board FRUs are shipped without processor or DIMMs. When replacing a system board, remove all FRUs from the original system board and install them on the new system board.
-3	93H5148	1	System Board - Type A-1
-3	93H5225	1	System Board - Type A-2
-3	93H7524	1	System Board - Type A-2 with TV OUT 'J13'
-NS	93F0063	1	Lithium Battery
-NS	33F8354	1	Lithium Battery (EMEA)
-NS	93F0067	1	Jumper Kit
-NS	12J6296	1	Screw Kit
-4	01K1104	1	DIMM, 16 MB SDRAM
-4	01K1105	1	DIMM, 32 MB SDRAM
-5	42H4865	1	P55C-166 MHz Processor
-5	42H4866	1	P55C-200 MHz Processor
-5	12J6236	1	P55C-233 MHz Processor
-NS	76H3658	1	Voltage Regulator for P55C Processor
-5	01K2063	1	Pentium II-233 MHz Processor
-5	01K2064	1	Pentium II-266 MHz Processor
-5	01K2109	1	Pentium II-300 MHz Processor
-5	01K2167	1	Pentium II-333 MHz Processor
-6	75H8991	1	Power Supply-200 Watt
-6	76H4873	1	Power Supply-200 Watt-Japan
