Aptiva - 2161 Sound Card diagram and connectors
Applicable to: World-Wide
Sound Card

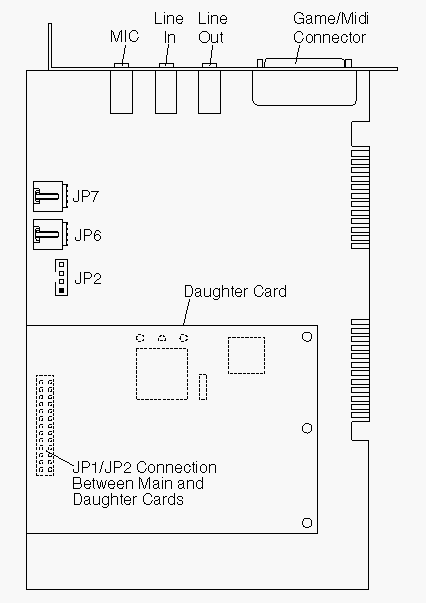

Figure 5 - 9. Sound Card
Sound Card Connectors
Table 5 -1. Sound Card
|
Connector |
Description |
|
JP2 |
CD -ROM connector |
|
JP6 |
Video Conference connector |
|
JP7 |
TV connector |
|
