Parts Information

Document ID: RWHE-3BTMWX

9306 Rack Enclosure - System Parts Listing (9306-4QS, 4QX)

Applicable to: World-Wide

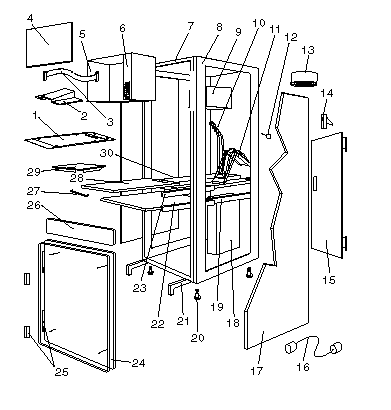

Parts Listing (Type 9306- 24-Inch):

Primary and Expansion Rack Models 4QS and 4QX

Index	24-Inch Rack Enclosure (Type 9306)	FRU
1	Adapter Plate Options:
	PS/2 Server 85/95	76H3733
	Model 300	76H3734
	Model 500, 700	76H3735
2	Monitor Stand	07H0061
3	Server Selector Cable	07H0036
4	Blank Bezel (4QX Only)	07H0066
5	Monitor Housing (24-Inch)	07H0065
6	Server Selector Keypad	07H0097
7	Rack Frame	N/A
8	Spacer (see Spacer Kit, Right Side)	07H0059
9	Server Selector Unit Electronics	07H0034
10	Internal Cables (see Cable Kit Top Shelf Server and Cable Kit Bottom Shelf Server)
11	Cable Management Arm	07H0087
12	Pin, Cable Management Arm	07H0089
13	Fan 220 V ac with Power Cord	07H0063
14	Rear Door Latch/Lock with Key and Bracket	07H0055
15	Rear Door (24-Inch)	07H0047
16	External Power Cord:
	Australia	14F1559
	Europe	14F1554
	Israel	14F1561
	Italy	14F1560
	New Zealand	14F1558
	South America, India	14F1557
	U.K./Denmark	14F1555
	USA	14F1553
	External Power Cord Option - 6 Ft.	07H0094
17	Left/Right Side Panel	07H0049
18	Power Distribution Unit	07H0424
	250 V Slow Blow Fuse	0303549
19	Keyboard Slides, 24-Inch (one pair)	07H0038
20	Leveling Feet (Qty. 4)	07H0053
21	Stabilizing Leg	07H0051
22	Keyboard Drawer, 24-Inch (with Slides and Brackets)	07H0077
23	Slide Rails, Server Tray (one pair)	07H0083
24	24-Inch Front Compartment Door (24-Inch by 26-Inch)	07H0058
25	Door Hinge Set	07H0045
26	Door Valance (4QX Only)	07H0068
27	Handle, Server/Keyboard Tray	07H0085
28	Server Tray	07H0081
29	Mouse Table	07H0079
30	Shelf, Server Tray, 24-Inch	07H0093
	Cable, SVGA-Video (15 Feet)	76H3736
	Monitor Power Cable (connects from monitor to Power Distribution Unit)	07H0075
	Rack Keyboard Cable (connects from Keyboard Drawer to Server Selector Unit)	07H0067
	Rack Mouse Cable (connects from Keyboard Drawer to Server Selector Unit)	07H0069

Rack Enclosure Kits 24-Inch (Type 9306)	FRU
Bolt-Together Kit (19-Inch to 24-Inch, 24-Inch to 19-Inch): - 19-Inch Attachment Bracket (2 each) - Screw 1/4-20 x 1/2 Button Head - Socket Cap Allen (8 each) - Screw 1/4-20 x 1-1/4 Socket Cap (4 each) - Flanged Nut 1/4-20 (12 each) - 24-Inch Attachment Bracket (4 each)	76H3627
Cable Kit Shelf Server (12 foot cables) - Monitor Cable - Keyboard Cable - Mouse Cable - Internal Power Cable	07H0073
Miscellaneous Parts Kit - Rack Nut/Holder 10-32 (8 each) - Keeper Nut 8-32 Zinc (8 each) - Keeper Nut 10-32 (6 each) - Screw 6-32 x 5/16 (2 each) - Screw 6-32 x 1/4 Button Head Socket Cap Allen (8 each) - Screw 10-32 x 3/8 Button Head Socket Cap (8 each) - Screw 6-32 x 3/8 Button Head Socket Cap (2 each) - Screw 1/4-20 x 1/2 Button Head Socket Cap (2 each) - Screw 8-32 x 1/4 Button Head Socket Cap Allen (4 each) - Screw 10-32 x 1/4 Button Head Socket Cap (2 each) - Screw 8-32 x 1/4 Button Head Socket Cap (8 each) - Pull-ring, 3-Inch (2 each) - Shoulder Screw 8-32 x 3/8 (2 each) - Standoff, 25 Hex, 6-32 FF, .5-Inch (2 each) - Screw 8-32 x 3/8 Button Head Socket cap (2 each) - Screw 10-24 x 1/4 Button Head Socket Allen (2 each) - Screw 10-24 x 5/16 Button head Socket Allen (2 each) - Keeper Nut 8-32 (2 each) - Nut 8-32 (2 each) - Captive Weld Nut (2 each) - Whiz-Lock Flange Nut 1/4-20 (2 each) - Keeper Nut 10-32 (2 each) - Bumpers (2 each) - Cable Ties (8 each)	07H0057
Server Tray Interlock Kit - Cam (1 each) - Spring (1 each)	07H0091
Spacer Kit, Right Side - Rack Joiner (8 each) - Spacer, Top and Bottom, 34-Inch (1 each) - Spacer, Body 70-Inch (2 each) - Screw 10-32 x 3/8 Button Head Socket cap - Screw 1/4-20 x 1/2 Button Head Socket cap - Whiz-Lock Flange Nut 1/4-20 (8 each) - Screw 6-32 x 3/8 Button Head Socket Cap	07H0059
