Service Hints & Tips |
Document ID: RMIE-3G6B9D |
Aptiva - 2136 Fax/Modem Card Layout & Functions
Applicable to: World-Wide

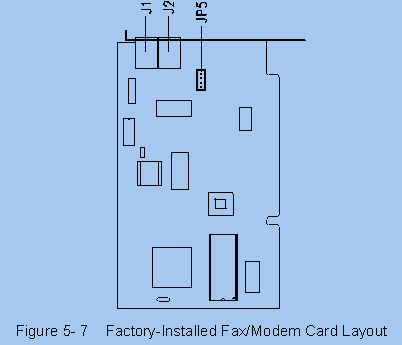

Factory-Installed Fax/Modem Card Connector Functions
Note: There are two types of fax/modem card for Canada and Germany geography though they have the same board layout.
|
Location |
Function |
Connect toà |
|
J1 |
Telephone line-out |
Telephone set |
|
J2 |
Telephone ine-in |
Telephone line |
|
JP5 |
Voice-in/speaker-out connector |
System board (CN3) |
|
