Aptiva - 2144/2168 (SL-C) Factory-installed modem jumper and switch settings
Applicable to: World-Wide
Factory-Installed Modem Jumper and Switch Settings:

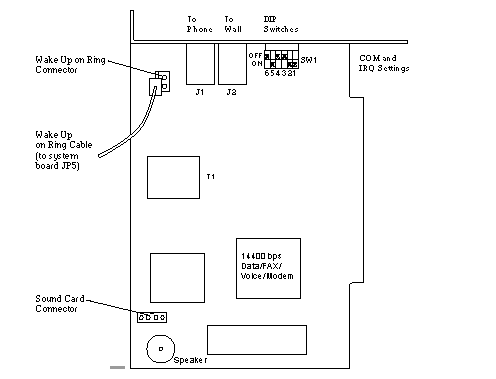

Figure 1-11. 14400 bps Data/FAX/Voice/Modem Card
Modem Switch Settings:
For the 14400 bps data/FAX/voice/modem card, the dual-inlinepackage (DIP) switches set the COM port address and the IRQ level as shown. For Advanced Diagnostics tests, use COM1.
Table 1-1. DIP Switch Settings
|
Address 1 |
2 |
3 | ||
|
COM1 |
3F8 |
On |
On |
Off |
|
COM2 |
2F8 |
Off |
On |
Off |
|
COM3 |
3E8 |
On |
Off |
Off |
|
COM4 |
2E8 |
Off |
Off |
On |
|
4 |
5 |
6 |
IRQ | |
|
COM 1 |
Off |
On |
Off |
4 |
|
COM 2 |
On |
Off |
Off |
3 |
|
COM 3 |
Off |
On |
Off |
4 |
|
COM 4 |
On |
Off |
Off |
3 |
Note:
The modem adapter card allows settings of IRQ 2 and IRQ 5 levels, which are not supported by IBM BIOS. Unpredictable results may occur if these settings are used.
|
