Service Hints & Tips

Document ID: DETR-3Y6NCL

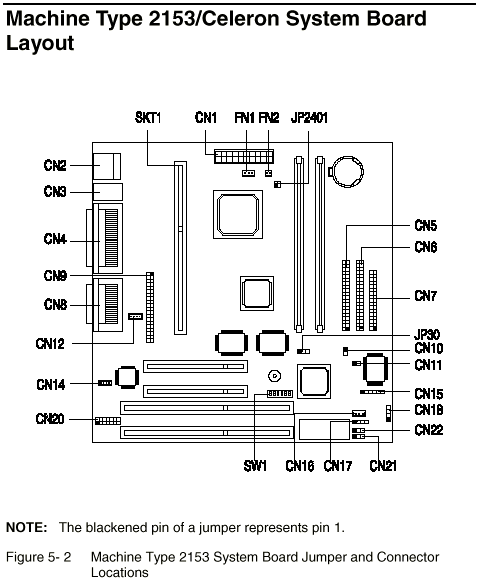

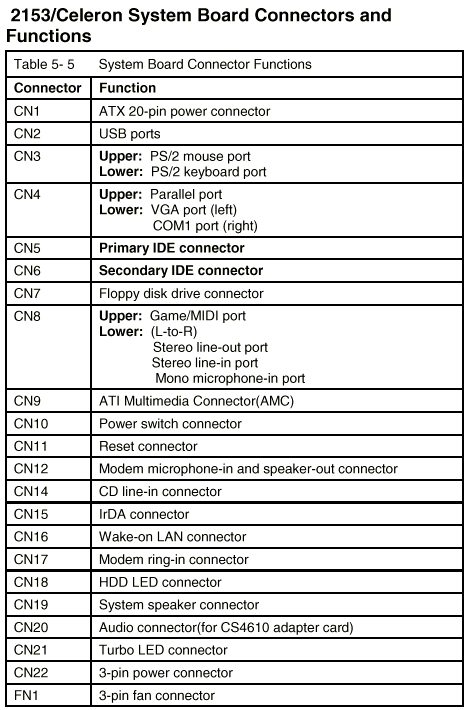

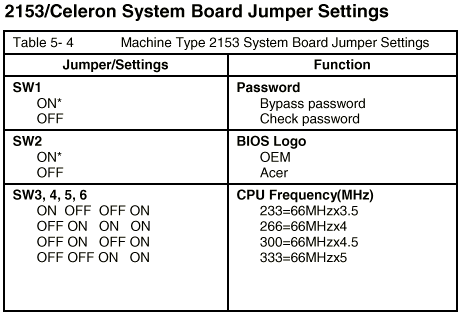

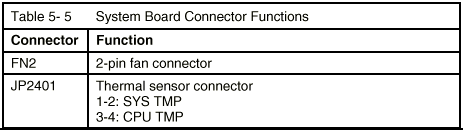

Aptiva - 2153 system board layout - Celeron processor

Applicable to: World-Wide


Search Keywords

Hint Category

System Boards, Jumper/Switch Settings, Processors, Hardware Installation/Configuration

Date Created

09-09-98

Last Updated

14-12-98

Revision Date

14-12-99

Brand

IBM Aptiva

Product Family

Aptiva

Machine Type

2153

Model

TypeModel
