Service Hints & Tips |
Document ID: GSMH-3EQEES |
TP 365X/XD - 1110 Keyboard Card/Cable
Applicable to: World-Wide
1110 Keyboard Card / Cable:
Battery Pack (1020)
Insulator Sheet (1025)
Diskette Drive / CD-ROM Drive (1040)
Hard Disk Drive (1050)
Top Cover (1060)
Keyboard Unit (1070)
LCD Assembly (1080)
LCD Panel (1085)
Indicator Card (1090)
|

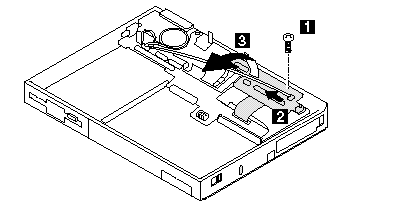

Step |
Screw Location (Quantity) |
Length |
|
1 |
Keyboard Card (1) |
M2 x 5 mm |
Note:
Make sure you use the correct screws when replacing.
Note:

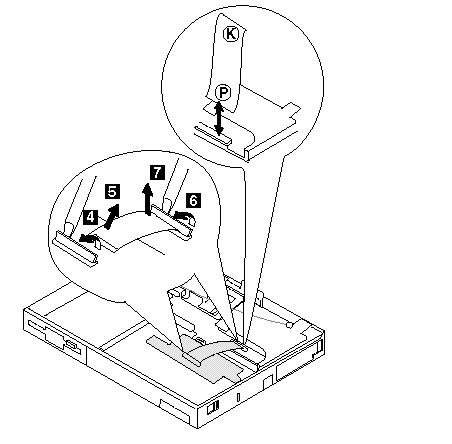

To remove the cable, do steps 6 and 7.
When reinstalling the cable, make sure the cable end with the letter P is installed in the system board connector. The end with the letter K should be installed in the keyboard card connector. (The letters should be facing you when you install the cable from the front of the machine.)
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information, Input Devices | |
|
Date Created |
28-02-97 | |
|
Last Updated |
28-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 365X/XD | |
|
Machine Type |
2625 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
