Aptiva - 2138 system unit (interior) service parts

43.339 bytes

Parts Information

Document ID: DETR-3YRLC9

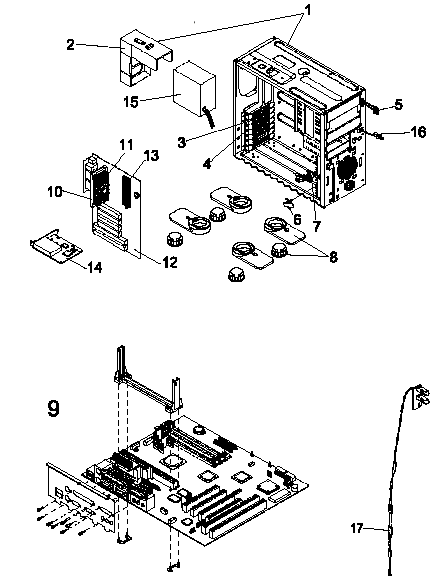

Aptiva - 2138 system unit (interior) service parts

Applicable to: World-Wide

Asm-Index

FRU Number

Description

2-1

02K2605

Assembly Lower Case (with Power Supply Frame, Driver Frame, Bracket Port, w/o Housing Stands)

2-2

02K2604

Power Supply Frame

2-NS

02K2334

Screw for Power Supply Frame

2-3

01K4200

Bracket Port

2-4

02K2334

Screw for Bracket Port

2-5

02K2335

Assembly Wire LED

2-6

01K4213

Mounting Purse Lock

2-7

01K4192

EMI Core

2-8

02K2606

Housing Stand

2-9

10L6658

System Board V65XA-1 (w/I retention
module, EMI grounding, I/O port bracket, hex screws and label)

2-9

10L6657

System Board V65XA-1 (w/I retention
module, EMI grounding, I/O port bracket, hex screws and label), (China only)

2-NS

02K2334

Screw for System Board

2-10

02K2563

Intel Pentium II 266 w/I ECC

2-10

02K2564

Intel Pentium II 300 w/I ECC

2-NS

02K2345

Flash ROM

2-11

02K2566

Processor Fan Sink

2-12

01K4278

Backup Battery (CR2032)

2-13

02K2288

DIMM 16MB w/o EEPROM

2-13

02K2289

DIMM 32MB w/o EEPROM

2-14

Modem Card, click here -

2-15

02K2562

Power Supply 200W

2-16

12J6877

Power Switch and Cable

2-NS

01K4259

Screw for Power Switch

2-17

02K2634

Power LED 3-pin to 2-pin Conversion
Cable

Search Keywords

Document Category

Service Parts

Date Created

28-09-98

Last Updated

08-04-99

Revision Date

08-04-2000

Brand

IBM Aptiva

Product Family

Aptiva

Machine Type

2138

Model

all

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Asm-Index	FRU Number	Description
2-1	02K2605	Assembly Lower Case (with Power Supply Frame, Driver Frame, Bracket Port, w/o Housing Stands)
2-2	02K2604	Power Supply Frame
2-NS	02K2334	Screw for Power Supply Frame
2-3	01K4200	Bracket Port
2-4	02K2334	Screw for Bracket Port
2-5	02K2335	Assembly Wire LED
2-6	01K4213	Mounting Purse Lock
2-7	01K4192	EMI Core
2-8	02K2606	Housing Stand
2-9	10L6658	System Board V65XA-1 (w/I retention module, EMI grounding, I/O port bracket, hex screws and label)
2-9	10L6657	System Board V65XA-1 (w/I retention module, EMI grounding, I/O port bracket, hex screws and label), (China only)
2-NS	02K2334	Screw for System Board
2-10	02K2563	Intel Pentium II 266 w/I ECC
2-10	02K2564	Intel Pentium II 300 w/I ECC
2-NS	02K2345	Flash ROM
2-11	02K2566	Processor Fan Sink
2-12	01K4278	Backup Battery (CR2032)
2-13	02K2288	DIMM 16MB w/o EEPROM
2-13	02K2289	DIMM 32MB w/o EEPROM
2-14		Modem Card, click here -
2-15	02K2562	Power Supply 200W
2-16	12J6877	Power Switch and Cable
2-NS	01K4259	Screw for Power Switch
2-17	02K2634	Power LED 3-pin to 2-pin Conversion Cable
