Service Hints & Tips |
Document ID: GKEY-3JRKMN |
TP 765 - Location (Front View)
Applicable to: World-Wide

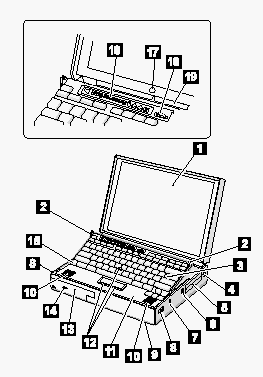

Locations - Front View
|
1. |
LCD |
|
2. |
Keyboard risers |
|
3. |
Auto tilt keyboard |
|
4. |
External-input-device connector |
|
5. |
PC Card slots |
|
6. |
PC Card eject button |
|
7. |
Security keyhole |
|
8. |
Release latches |
|
9. |
Front infrared port |
|
10. |
Built-in speaker |
|
11. |
Front palm rest |
|
12. |
TrackPoint III |
|
13. |
Removable diskette drive or CD-ROM drive (model-unique) |
|
14. |
CD-ROM eject button (CD-ROM model) |
|
15. |
Fn key |
|
16. |
LCD indicator panel |
|
17. |
Built-in microphone |
|
18. |
Volume control |
|
19. |
Brightness control |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
07-07-97 | |
|
Last Updated |
01-04-98 | |
|
Revision Date |
12-03-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 765L, ThinkPad 765D | |
|
Machine Type |
9546, 9547 | |
|
Model |
Various | |
|
