Aptiva - 2144/2168 (SL-F/H/I) Type 1 System board layout and locations
Applicable to: World-Wide

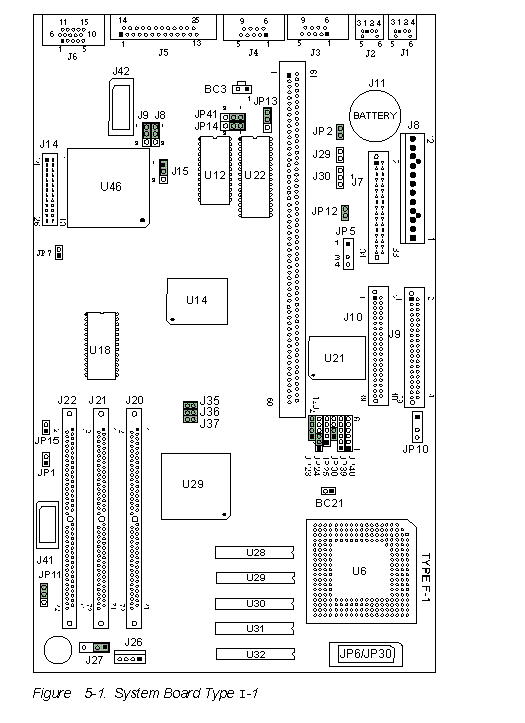

System Board Locations - Type H-1 and I -1:
|
J1 |
Keyboard connector |
|
J2 |
Mouse connector |
|
J3 |
Serial Port A connector |
|
J4 |
Serial Port B connector |
|
J5 |
Parallel Port connector (Printer) |
|
J6 |
Monitor signal connector |
|
J7 |
Diskette drive connector |
|
J8 |
Power supply connector |
|
J9 |
Primary Hard Disk IDE (Hard Disk 1, Hard Disk 2) |
|
J10 |
Primary Hard Disk IDE (Hard Disk 3 or CD-ROM, Hard Disk 4) (For hard disk drive jumper settings) |
|
J11 |
Riser Connector - ISA AT bus |
|
J13 |
System board flash jumper (Normal: 1-2) |
|
J14 |
VESA Video feature connector |
|
J15 |
Video Disable (Normal: 1-2) |
|
J20 |
RAM 72-pin memory SIMM Socket - Bank 2 |
|
J21 |
RAM 72-pin memory SIMM Socket - Bank 1 |
|
J22 |
RAM 72-pin memory SIMM Socket - Bank 0 |
|
J26 |
LED Connector (Power: 1-2, Hard Disk Drive: 3-4) |
|
J27 |
Internal Speaker (Enable: 1-2, Disable: open) |
|
J29 |
Power Supply 2-pin connector (on/off switch) |
|
J30 |
Power Supply 3-pin connector |
|
J34 |
Riser Connector¬VESA local bus |
|
J35,J36,J37 |
System board clock speed selection |
|
J41 |
Infrared (IR) connector |
|
J42 |
Internal graphics connector |
|
JP1 |
Diskette drive write protect override jumper |
|
JP2 |
Smart Energy System (SES) supply present (Normal: 2-3) |
|
JP3,JP4 |
VESA local bus jumpers (VESA: 1-2, PCI: 2-3) |
|
JP5 |
Modem Wake Up on Ring |
|
JP6/JP30 |
System board voltage regulator |
|
JP7 |
VESA local bus connector |
|
JP8,JP9 |
DMA channel jumpers |
|
JP10 |
DX4 Processor speed jumper |
|
JP11 |
Linear graphics size jumper (128MB: 1-2, 2GB: 2-3) |
|
JP12 |
Mouse enable (Enable: 1-2, Disable: 2-3) |
|
JP13 |
VESA local bus jumper |
|
JP14 |
Power-on Password Reset (Normal: 1-2, Clear: 2-3) |
|
JP15 |
VGA jumper (Enable: 1-2, Disable: 2-3) |
|
JP23,JP24,JP25 |
Processor jumpers |
|
JP38,JP39,JP40 |
Processor jumpers |
|
JP41 |
Printer IRQ select jumper |
|
U6 |
Processor |
|
U18 |
Video Memory Module Connector |
|
U22 |
System BIOS |
|
U28 |
Cache Memory Tag Socket |
|
U29,U30,U31,U32 |
Cache Memory Sockets |
|
