Service Hints & Tips |
Document ID: DDSE-3QRMM9 |
PC Server 720 - Bays / controls / connector locations
Applicable to: World-Wide
Locations:

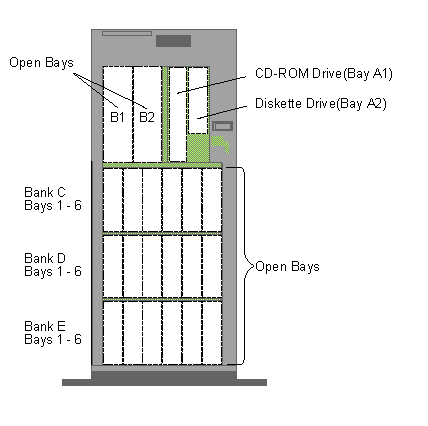

Bays

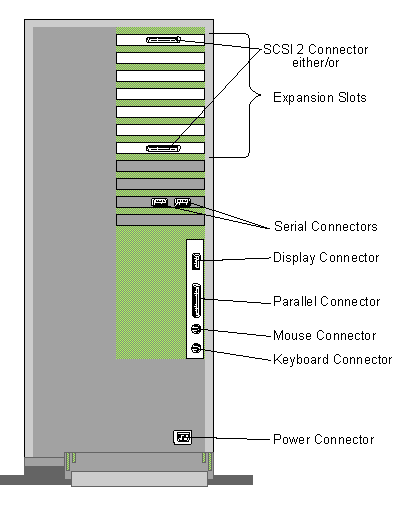

Connectors (Rear View)

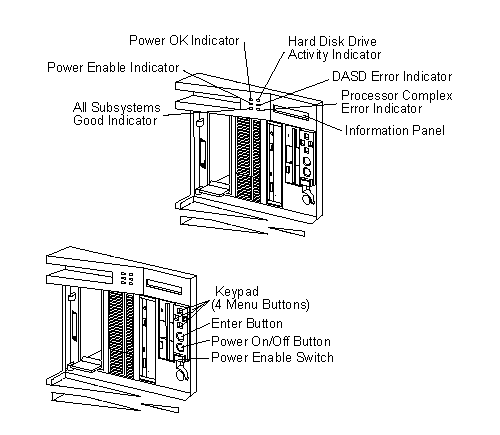

Controls/Indicators (Front View)
|
