9306 Rack Enclosure - System Parts Listing (9306-900)

Applicable to: World-Wide

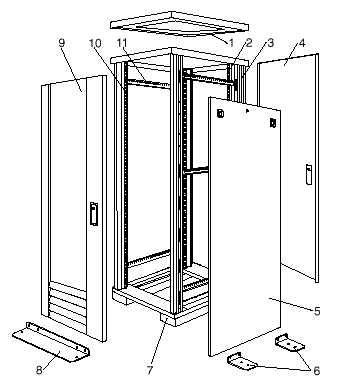

Parts Listing (Type 9306 Model 900)

Index	Rack Enclosure (Type 9306 Model 900)	FRU
1	Top Cover including cover standoffs and screws	12J4481
2	Rear EIA Rail (1) Includes mounting hardware	76H4956
3	Rack Frame Caster (1) Leveler (1)	76H4959 12J4466 76H4960
4	Rear Door Assembly Including latch and lock	12J4478
5	Side Panel Assembly (option) Including latches and lock	76H4949
6	Stabilizer Bar (1)	12J4467
7	Caster Extension Plinth (1)	12J4482
8	Front Stabilizer	12J4485
9	Front Door Assembly Including latch and lock	76H4942
10	Front EIA Rail (1) Includes mounting hardware	76H4951
11	Side Brace (1)	12J4477
	Front/Rear Door Hinge with Pin	76H4966
	Front/Rear Door Latch with Lock and Keys	76H4967
	Front/Rear Door Striker Plate (1) Includes mounting hardware	12J4465
	Front/Rear Door Hinge Pin (1)	12J4469
	Label, EIA Unit Numbers	12J4471
	Miscellaneous Parts Kit - Includes: Caged Nut, M6 (6) Screw, M6 Hex Head (6) Screw, M6 Socket (5) Washer, 10/32 flat (6) Hex Nut, M6 (5) Screw, M6X12 Button Head (5)	76H4950

Rack Enclosure (Type 9306 Model 900) Options	FRU
Monitor Housing	76H4947
Side Panel Lock with Keys	76H4965
Side Panel Latch	12J4468
Filler Panel (1U, 3U, and 5U)	12J4473
Keyboard Tray	76H4958
Keyboard Tray II	28L0562
Keyboard Tray II filler block	28L0567
Keyboard Slides (set) with Hardware	76H4961
Fixed Shelf with Hardware	76H4963
Single Slide Shelf	76H3628
Rack to Rack Mounting Kit - Includes: Horizontal Trim (1) Vertical Trim (2) M6x16 Screws (12) M6 Cage Nuts (4) M6 Whiz nuts (10) Brackets, Rack Mounting (4)	12J4476
C13 - C14 Power Cable	07H0075
C19 - C14 Power Cable	76H4964
C13 - NEMA 5-15P Power Cable	76H4962
C19 - NEMA 5-15P Power Cable	12J4479
Video, Mouse, Keyboard Power Cable (12 feet)	07H0073
Video, Mouse, Keyboard Power Cable (25 feet)	12J4484
Mouse Extension Cable	07H0069
Keyboard Extension Cable	07H0067
Concentrator with Hardware (8 port)	76H4948
Concentrator with Hardware (4 port)	28L0543
Low Voltage Power Distribution Unit - 8 AC sockets; With Hardware	12J4472
208 V Power Distribution Unit - 10 AC sockets; With Hardware	12J4483
250 V Slow Blow Fuse	0303549
