Service Hints & Tips

Document ID: GSMH-3BFM5K

TP 755CD/CDV - Common/Option Parts List

Applicable to: World-Wide

Common/Option Parts List:
Miscellaneous Parts:

Miscellaneous Parts Kit
(Includes: modem guide;
DC-in holder; spacer for video card;
bracket for s-card; holder for s-card;
modem lever; TV tuner label)

85G1933

Screw Kit
(Includes: 20-2.5 x 6 mm; 10-2.5 x 4 mm; 20-2.5 x 8 mm; 10-2.5 nut; 10-hex stud bus; 10-washer bus; 72 10-spring lock washers; 10-2.5 x 8 mm (flat head);
10-2.6 x 5 mm (deform screw)

85G1935

IC DRAM CARD. Eject Tape

53G9318


DAA Assembly:

Austria

59G1041

Australia

59G1040

Belgium

43G3414

Denmark

59G1042

Finland

59G1043

France

4525652

Germany

59G1056

Korea

66X2096

Malaysia

59G1066

Netherlands

43G3409

Norway

59G1044

New Zealand

43G3411

PRC/Hong Kong

54F0693

Singapore

66X2096

Sweden

54F0717

Switzerland

59G1057

Taiwan

59G1067

Thailand

59G1064

U.K.

59G1045

U.S.

85G1504



PSTN Cable:

Austria

58G4386

Australia

58G4343

Belgium

58G4346

Denmark

58G4333

Finland

58G4334

France

58G4335

Germany

58G4347

W/W

43G3398

Netherlands

58G4340

Norway

58G4334

New Zealand/PRC/Hongkong

58G4332

Sweden

58G4336

Switzerland

58G4348

U.K.

58G4345


Options:

Notes:
1. When you replace the AC Adapter or the Quick Charger witha new one, usethe one for the country you are in even if the system is from different country.
2. The warranty for the system unit does not apply to all options.


AC Adapter (40W)

49G2196

For Japan

49G2197

AC Adapter (100 - 125 V ac, 40W)
For U.S. only.

84G4320

Audio Cable

66G5180

Battery Pack (Li-ion, for 755CDV)

85G8554

Car-Battery Adapter

49G1148

Small Car-Battery Adapter

84G4359

Diskette Drive Attachment Unit

66G5069

IC DRAM CARD 2MB

07G1414 74

IC DRAM CARD 4MB

07G1415

IC DRAM CARD 8MB

07G1416

IC DRAM CARD 16MB

66G0094

Microphone

66G7871

PS/2 Miniature Mouse

95F5723

Port Replicator

66G3575

Port Replicator with PCMCIA

66G3574

Travel Quick Charger (3-pin)

85G1530

Quick Charger Cable

85G1531

DIMM 4MB

84G4323

DIMM 8MB

84G6545

DIMM 16MB

84G4324

DIMM Adapter Card

84G4322

Headset

85G1529


Numeric Keypad:

Belgian

95F5741

Canadian French

95F5466

Danish

95F5467

Dutch

95F5467

French

95F6313

German

95F6314

Greek

95F5467

Hebrew

95F5741

Icelandic

95F5467

Italian

95F6316

Japanese

79F6401

Norwegian

95F5467

Spanish

95F6315

Swedish/Finnish

95F5468

Swiss/French

95F5711

Swiss/German

95F5715

Turkish

95F5467

U.K. English

95F5741

U.S. English

95F5741


Black Keypad:

French

84G6286

German

84G6280

Italian

84G6292

Swedish

84G6304

Norway

84G6310

U.K. English

84G6298

U.S. English

84G2530


Black Keyboard:

French

84G6285

German

84G6279

Italian

84G6291

Swedish

84G6303

Norway

84G6309

U.K. English

84G6297

U.S. English

84G2529


Accessories (Models 755x):

Keyboard/Mouse Cable

54G0444


Tools:

Tri-Connector Wrap Plug

72X8546

PC Test Card

35G4703

Audio Wrap Cable

66G5180

Screwdriver Kit

95F3598

ThinkPad 750Ce Hardware Maintenance Diskette
(This diskette is common to all ThinkPad models.)

82G3891

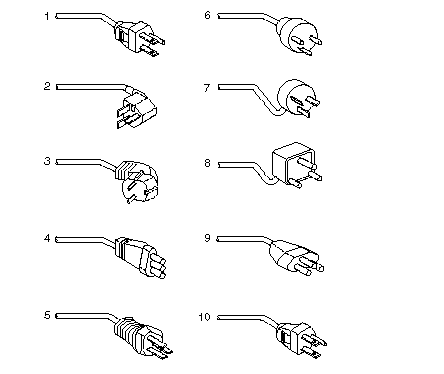

Power Cords:

Warning:
Use the power cord certified for your country.

Country

30/40W

35W

1

Colombia, U.S., Venezuela

13F9959

25H2207

Japan, 2-pin

6454377

85G6665

Japan, 3-pin

65F0031

2

Hong Kong, Singapore, U.K.

14F0033

25H2215

3

France, Germany, Spain

13F9979

25H2209

4

Italy

14F0069

25H2223

5

Australia, New Zealand

13F9940

25H2205

6

Denmark

13F9997

25H2211

7

Israel

14F0087

25H2225

8

Bangladesh, Pakistan, Sri Lanka, South Africa

14F0015

25H2213

9

Switzerland

14F0051

25H2221

10

Thailand

1838574

25H2219


Note:
The 30/40W cord is 6 feet long; the 35W cord is 6 inches.
