Netfinity 5000 - Parallel Port Connector
Applicable to: World-Wide
Parallel Port Connector

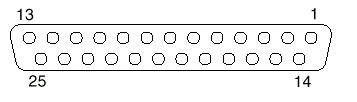

Parallel ports are used to communicate with printers and other devices, such as some CD-ROM and tape drives. Your server provides one 25-pin, D-shell connector on the back of the server.
This parallel port connector conforms to the Institute of Electrical and Electronics Engineers (IEEE) Standard 1284. There are three standard modes of operation:
Standard Parallel Port (SPP)
Enhanced Parallel Port (EPP)
Extended Capability Port (ECP)

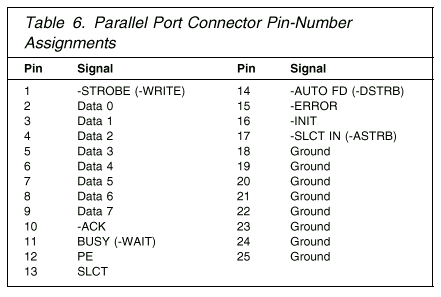

Table 6 shows the pin-number assignments for the parallel port connector. The signal names for all three modes are shown. SPP and ECP signal names are the same; EPP signal names that are different are shown in parentheses.
|
