TP 380Z - 1020 Battery pack removal
Applicable to: World-Wide

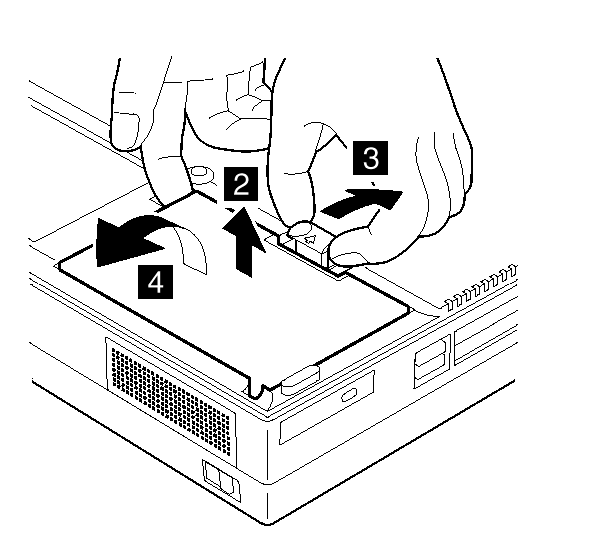

To remove the battery pack:
1. Turn the computer upside down.
2. Pull up on the battery pack lock.
3. Push it back.
4. Pull up the battery pack
|
