Aptiva - 2161 Detachable monitor I/O signal cable connector test points
Applicable to: World-Wide
Detachable Monitor I/O Signal Cable Connector Test Points

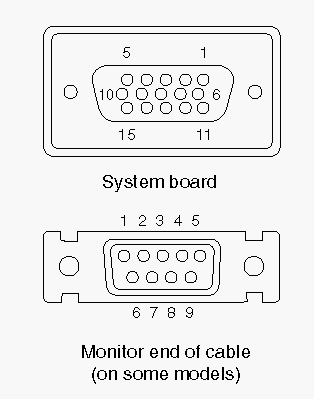

Figure 5-18. Detachable Monitor I/O Signal Cable Connectors
Test each connector between the following pins:
|
System |
Monitor |
|
1 |
1 |
|
2 |
2 |
|
3 |
3 |
|
13 |
4 |
|
14 |
5 |
|
6 |
6 |
|
7 |
7 |
|
8 |
8 |
|
10 |
9 |
|
11 |
9 |
|
