Aptiva - 2144/2168 (SL-C) parts - CD-ROM drive and sound cards
Applicable to: World-Wide
|
Asm-Index |
Part Number |
Units |
Description |
|

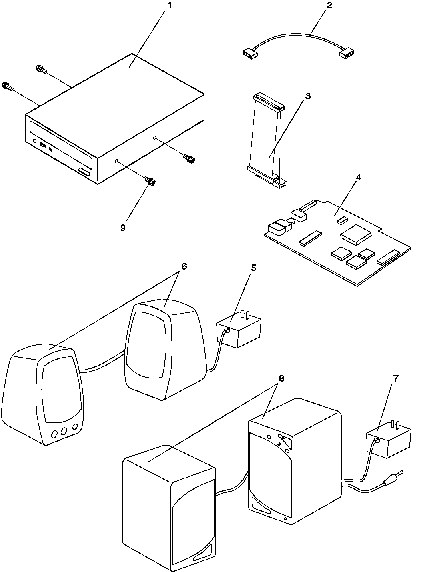

6-1 |
For multimedia MM3 models, order Level 3 part numbers. For MM4 models, order Level 4 part numbers. Models -877, -887, and -889 use Level 4 speakers and speaker power supplies with Level 3 sound adapter cards and cables. See the Appendix, "Model/Monitor Configurations and FRU Part Numbers" in topic A.0 of the HMM for model specifications. | ||
|
-1 |
10H3091 |
1 |
5.25-in. CD-ROM Drive (IDE) |
|
-2 |
10H2924 |
1 |
CD-ROM Drive Audio Cable Level 3 (Sound Blaster 16) |
|
-2 |
04H5990 |
CD-ROM Drive Audio Cable (IDE) Level 4 (Aria) | |
|
-3 |
93F2394 |
1 |
CD-ROM/Hard Disk Drive Ribbon Cable |
|
-4 |
10H2826 |
1 |
Sound Adapter Card Level 3 (Sound Blaster 16) |
|
-4 |
74G0304 |
1 |
Sound Adapter Card Level 4 (Aria) |
|
-5 |
10H2833 |
1 |
Speaker Power Supply (U.S. and Canada; Level 3) |
|
-5 |
10H2835 |
1 |
Speaker Power Supply (U.K.; Level 3) |
|
-5 |
10H2837 |
1 |
Speaker Power Supply (EMEA; Level 3) |
|
-5 |
10H3076 |
1 |
Speaker Power Supply (AP; Level 3) |
|
-6 |
74G0311 |
1 |
Speakers (Cables included) Level 3 (4 watt/channel) |
|
-7 |
04H5588 |
2 |
Speaker Power Supply (U.S. and Canada; Level 4) |
|
-7 |
10H2839 |
1 |
Speaker Power Supply (U.K.; Level 4) |
|
-7 |
10H2841 |
1 |
Speaker Power Supply (U.K.; Level 4) |
|
-7 |
10H3077 |
1 |
Speaker Power Supply (AP; Level 4) |
|
-8 |
73G4527 |
2 |
Speakers (Cables included) Level 4 (30 watt/channel) |
|
-NS |
60G2272 |
1 |
Microphone (Base included) |
|
-NS |
10H3057 |
1 |
Joystick (EMEA) |
|
-9 |
93F0041 |
1 |
Packet (Mounting screws) |
|
