Netfinity EXP15 - System Parts Listing

Applicable to: World-Wide

Source: Hardware Maintenance Manual

System

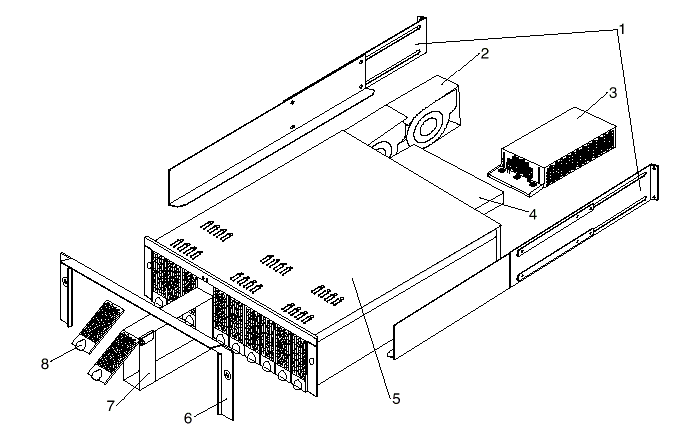

Index	System (IBM Netfinity EXP15, Type 3520) Model 2RU, 2RX	FRU No.
1	Rail Kit	01K6670
2	Blower Assembly	01K6706
3	350W Power Supply Assembly	01K6709
4	Electronic Module (ESM)	01K6708
5	Midplane/Frame Note: The midplane board and frame are replaced as a unit. If either part is needed, order the above FRU.	01K6707
6	Bezel, Front	01K6705
7	Blank Tray, with bezel	01K6667
8	Bezel, HF Tray	01K6666
	Misc Hardware Kit ESM Lever Screws (2 each) Power Supply Lever Screw Power Cord Retainer Power Cord Retainer Knurled Nut EMC Clips (6 each) Tray Spring 6-32 Tray Spring Screw and nut 6-32X1/4-Inch Drive Screws (2 each) ESM Latch Left ESM Latch Right Power Supply Latch Light Pipes (2 each) 6-32X1/2-Inch Screw M6 Rail Screws (2 each) M5X8L Screw (2 each) M3X5L Screw (2 each) Large Spacer (2 each)	01K6671
Options		FRU No.
	LVD SCSI Cable, 2 Meter external	03K9196
	LVD SCSI Cable, 4 Meter external	03K9198
	LVD SCSI Cable, 12 Meter external	03K9200
	4.5 GB Hard Disk Drive with tray and bezel (7200 RPM)	01K6675
	4.5 GB Hard Disk Drive with tray and bezel (10,000 RPM)	01K6682
	9.1 GB Hard Disk Drive with tray and bezel (7,200 RPM)	01K6679
	9.1 GB Hard Disk Drive with tray and bezel (10,000 RPM)	02K0459
	18.2 GB Hard Disk Drive with tray and bezel (7,200 RPM)	01K6718
	18.2 GB Hard Disk Drive with tray and bezel (10,000 RPM)	02K0462
	HF tray with holes (restricted)	01K6677
