Document ID: MCGN-3UFLUR |
Netfinity 5500 - SCSI Backplane Component Locations and SCSI Backplane Option Jumpers
Applicable to: World-Wide

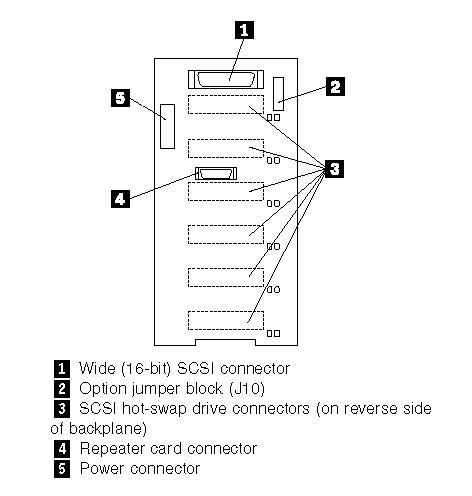

SCSI Backplane Component Locations
The following simplified layout of the SCSI backplane identifies the components. Refer to this figure when you set the jumpers on the backplane.
SCSI Backplane Option Jumpers
The option jumper block on the SCSI backplane defines the SCSI IDs for hot-swap drives. See the illustration in "SCSI Backplane Component Locations" for the location of the option jumper block.

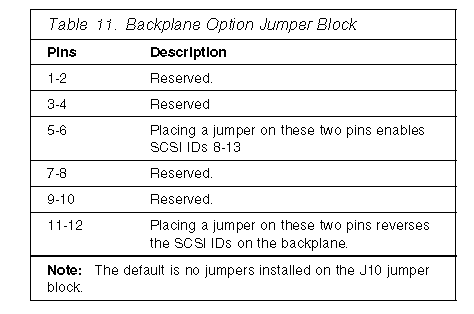

Table 11 summarizes the settings for the SCSI backplane option jumper block (J10).

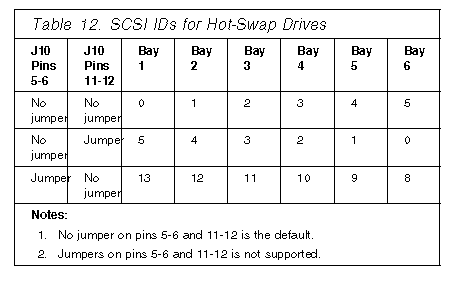

Table 12 shows the SCSI IDs that you can use for hot-swap drives.
|
