Service Hints & Tips |
Document ID: GSMH-3C7CQE |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
Laptop L40SX - Memory Checkout
Applicable to: World-Wide

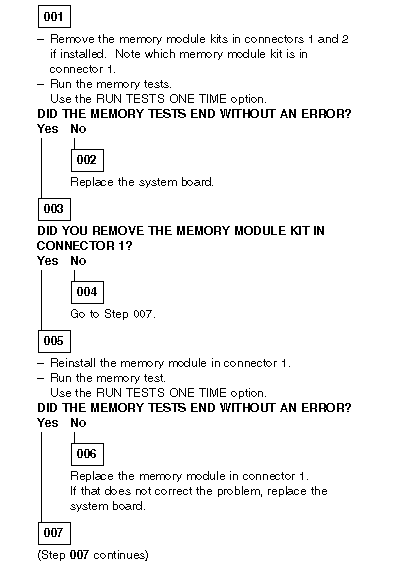

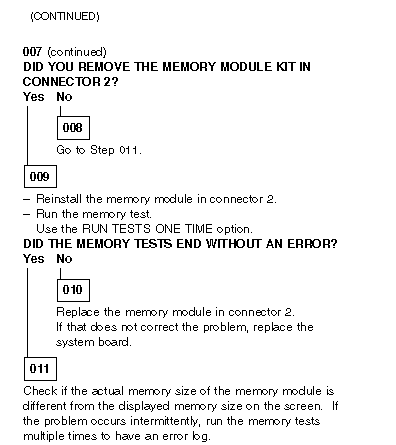

Memory Checkout Notes:
1. Power-off the computer before removing or replacing any parts.
2. Run AUTOMATIC CONFIGURATION after removing or replacing memory modules. (If you have to run configuration with your own diskette, be sure the customer has all the correct option diskettes available.)
3. Disregard 164 Memory-Size Errors. (Model L40 does not work with the combination of two 4MB memory modules installed.)
|
