Document ID: DDSE-42SUXQ

Netfinity 7000 - Rack Mounting FRUs (8651-RH0, RM0)

Applicable to: World-Wide

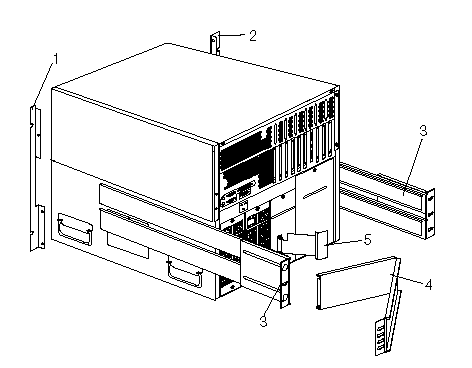

Rack Mounting FRUs (Models RH0, RM0 - Type 8651)

Index	Mounting (Rack Models RH0, RM0 - Type 8651)	FRU No.
1	Chassis Flange Right (Models RH0, RM0)	12J7038
2	Chassis Flange Left (Models RH0, RM0)	12J7039
3	Rack Slides (Models RH0, RM0)	12J3086
4	Cable Management Arm (Models RH0, RM0)	12J3088
5	Cable Management Arm Bracket (Models RH0,RM0) Miscellaneous Rack Kit (Models RH0, RM0) 8/32-Inch Screws (21 each) 10X32X.5-Inch Screws (13 each) 10X32X1.0-Inch Screws (3 each) 8/32 Nuts (5 each) #8 Lock-Washers (5 each) 10/32 Bar Nuts (5 each) Floating Nuts (3 each) Nut Bar (Models RH0, RM0)	12J3089 12J3090 01K6662

	Search Keywords
	Document Category	Diagrams
	Date Created	03-12-98
	Last Updated	03-12-98
	Revision Date	02-12-99
	Brand	IBM PC Server
	Product Family	Netfinity 7000
	Machine Type	8651
	Model	RH0; RM0
