PC Server 300 - Pentium System Board Location Diagram
Applicable to: World-Wide

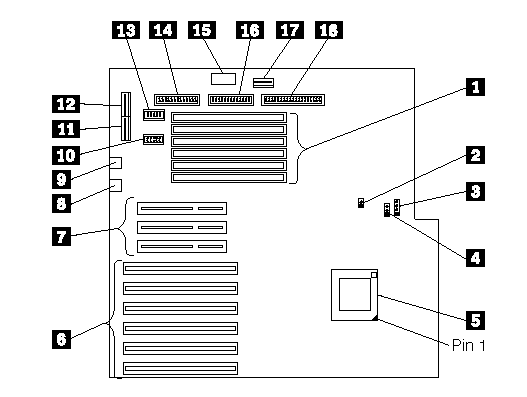

Locations (Pentium System Board)
1 Memory connectors (J7, J8, J9, J10, J33, and J34)
2 IDE hard disk drive LED connector (W10) IDE hard
disk drive adapter connector
3 Power LED connector (W9)
4 Speaker connector (J11)
5 Processor socket
6 EISA slots (J23, J24, J25, J26, J27, J28)
7 PCI slots (J30, J31, and J32)
8 Mouse port (J15)
9 Keyboard port (J14)
10 Serial port, COM1 (J20)
11 Power supply connector P1 (J12)
12 Power supply connector, P2 (J17)
13 Serial port, COM2 (J21)Ì 14Ï Parallel port (J18)
15 Real-time clock socket
16 Diskette drive connector (J19)
17 Power supply connector, P3 (J37)
18 IDE 2 hard disk drive connector (J22)
IDE hard disk drive adapter connector
|
